| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 1604 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

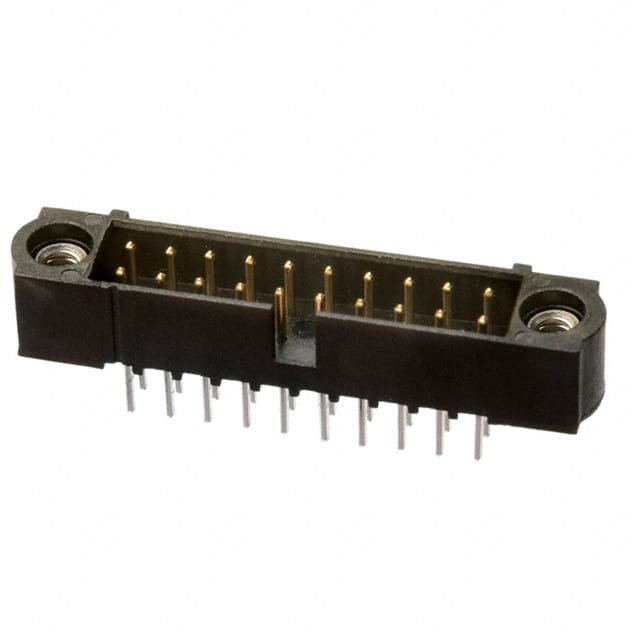

The M80-5003442 is a 34-position (17+17) male header from Harwin's Datamate J-Tek series, featuring a 2.00mm pitch and 2-row configuration. This shrouded header is designed for board-to-board or cable-to-board applications requiring high-reliability connections. It employs threaded jackscrews for secure mating and features a keying slot to prevent misalignment.
Electrical ratings include 3.3A per contact at 25°C ambient (one contact loaded) and 2.2A when all contacts are loaded at 85°C. The voltage rating is 120V. Contacts are made of phosphor bronze with gold plating on the mating area and tin on the termination tails. The insulator is black glass-filled polyphenylene sulfide (PPS) rated UL94 V-0.
This component is mounted via through-hole solder termination with straight leads, requiring a 2.00mm pitch and 2.00mm row spacing. The insulation height is 5.60mm and the solder tail length is 3.25mm. The operating temperature range is -55°C to 125°C. Features include a keying slot and mating flange. The part is RoHS3 and REACH compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $15.42 | $15.42 |
| 12+ | $12.94 | $12.94 |
| 102+ | $11.12 | $11.12 |
| 504+ | $9.94 | $9.94 |
| 1,002+ | $9.47 | $9.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions arranged as 17+17 in two rows.
The pitch is 2.00mm (0.079 inches).
3.3A per contact at 25°C with one contact loaded; 2.2A when all contacts are loaded at 85°C.
120V.
Through-hole, solder termination, straight leads.
-55°C to 125°C.
Gold on mating area, tin on termination tails, with gold thickness of 0.75µm.
