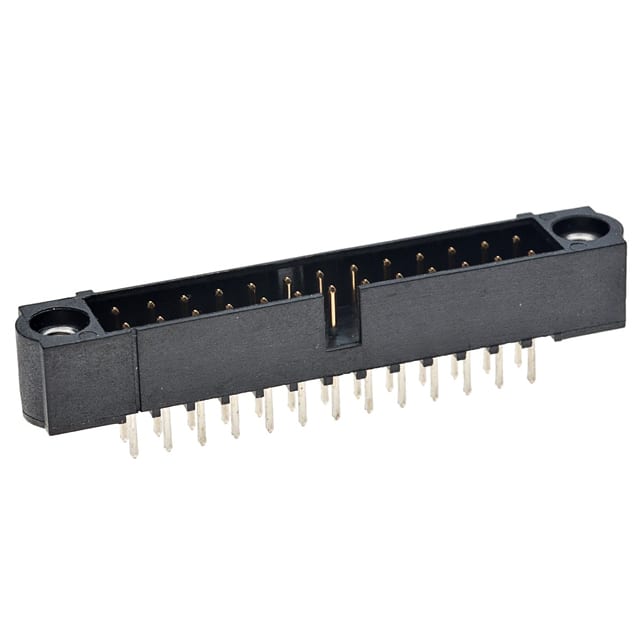

M80-5002642 26 position, 2.00mm pitch male pin header from Harwin's Datamate J-Tek series. Through hole mounting with solder termination and threaded jackscrews.
Mfr Part #:

M80-5002642

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
26 position, 2.00mm pitch male pin header from Harwin's Datamate J-Tek series. Through hole mounting with solder termination and threaded jackscrews.
✓ Total Stock: 28 pcs
$ Price Range: $8.73 - $14.22

M80-5002642 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-5002642 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Storage Temperature
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

M80-5002642 Description

Short technical summary and product information.

The Harwin M80-5002642 is a 26 position (13+13) male pin header from the Datamate J-Tek series. It features a 2.00mm pitch, double row configuration, and a shrouded 4-wall design for mating alignment. The connector is through hole mounted with solder terminations and includes internally threaded jackscrews for secure fastening.



Contact areas are gold plated (0.75µm) for reliable electrical performance, while termination areas are tin plated. The insulation is black glass-filled PPS rated UL94 V-0. Operating temperature range is -55°C to 125°C.



Electrical ratings: 3.3A per contact at 25°C (2.6A at 85°C), and 3.0A all contacts at 25°C (2.2A at 85°C). Voltage rating is 120V. The connector is suitable for board-to-board or cable-to-board applications requiring high reliability.

M80-5002642 Quick Information

Product Type: Header, Male Pins
Series: M80
Canonical Name: Harwin M80-5002642 - 26 Position 2.00mm Pitch Male Pin Header, Shrouded, Through Hole, Threaded Fastening
Subcategory: Male Pins

M80-5002642 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

M80-5002642 Estimated Pricing

Qty Low High
1+ $14.22 $14.22
14+ $11.80 $11.80
105+ $10.24 $10.24
504+ $9.16 $9.16
1,001+ $8.73 $8.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-5002642 Features

  • 26 positions in a 2x13 double row configuration.
  • 2.00mm pitch for high-density designs.
  • Gold plated contact areas for reliable connections.
  • Threaded jackscrews for secure mating.
  • Wide operating temperature range -55°C to 125°C.

M80-5002642 Applications

  • Used in board-to-board interconnections.
  • Ideal for industrial control systems.
  • Suitable for high-reliability military/aerospace.
  • Applied in data communication equipment.

M80-5002642 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M80-5002642 have?

26 positions, all loaded.

What is the pitch of the M80-5002642?

2.00mm.

What is the current rating of the M80-5002642?

3.3A per contact at 25°C, 2.6A at 85°C; 3.0A all contacts at 25°C, 2.2A at 85°C.

What is the voltage rating?

120V.

What is the mounting type?

Through hole.

What is the contact finish?

Gold on contact area, tin on termination.

What is the operating temperature range?

-55°C to 125°C.
