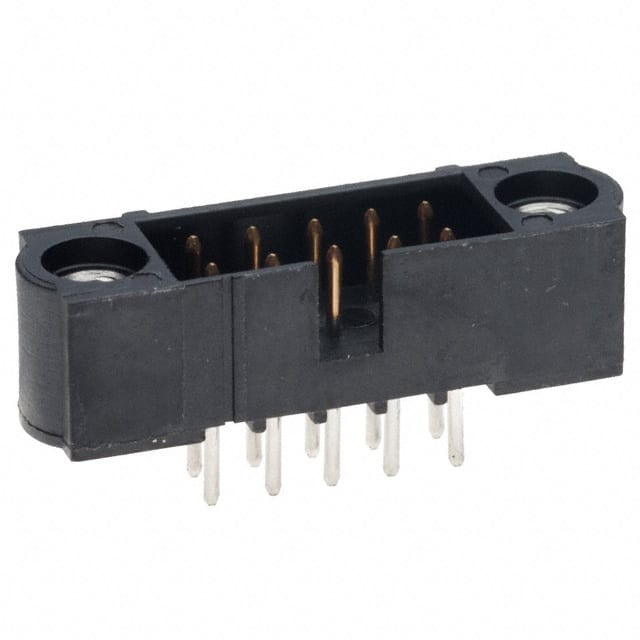

The M80-5001042 from Harwin is a 10 position (5+5) male pin header part of the Datamate J-Tek series. It features a 2.00mm pitch dual row configuration with through hole mounting and straight solder termination. The connector is fully shrouded with four walls and includes threaded jackscrews for secure mating.
The header is rated for 3.3A per contact at 25°C (single contact loaded) and 120V maximum. It operates over a temperature range of -55°C to 125°C. Mating contacts are gold plated (hard acid gold 98% purity, 0.75µm thickness) while termination areas are tin plated. The insulation is black glass-filled PPS with UL94 V-0 flammability rating.
Designed for board-to-board or cable-to-board applications, the connector includes keying slots and a mating flange for alignment. The contact material is phosphor bronze with circular contact shape. This connector is suitable for high-reliability applications requiring robust mechanical and electrical performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.78 | $11.78 |
| 13+ | $9.83 | $9.83 |
| 104+ | $8.48 | $8.48 |
| 507+ | $7.59 | $7.59 |
| 1,001+ | $7.23 | $7.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions arranged in 2 rows.
2.00mm pitch.
3.3A per contact at 25°C ambient (single contact loaded), 3.0A when all contacts loaded at 25°C.
120V maximum.
Through hole mounting with solder termination.
Threaded jackscrews for secure mating.
-55°C to 125°C.
