| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

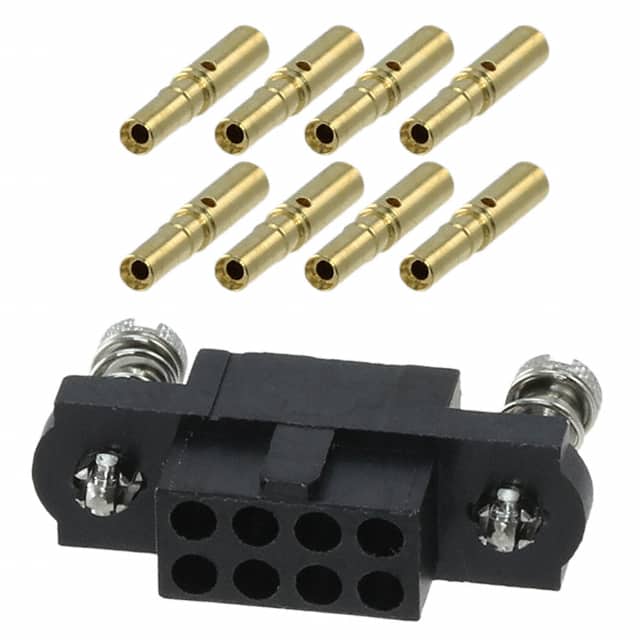

The Harwin M80-4C10805FC is an 8 position (4+4) female receptacle connector from the Datamate J-Tek series. It features a 2.00mm pitch, two rows, and a free hanging (in-line) mounting style with screw lock fastening (jackscrews) for secure mating. The connector uses crimp termination and accepts 24-28 AWG discrete wires. Contacts are female sockets with gold plating (0.30µm thickness) for reliable conductivity. The housing is black and includes polarizing keys and jackscrews. Current rating is 3.0A at 25°C ambient (all contacts loaded) and 2.2A at 85°C. This connector is part of Harwin's high-reliability Datamate range, designed for cable-to-board or cable-to-cable interconnections in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.23 | $15.23 |
| 10+ | $12.94 | $12.94 |
| 25+ | $12.13 | $12.13 |
| 50+ | $11.55 | $11.55 |
| 100+ | $11.00 | $11.00 |
| 250+ | $10.31 | $10.31 |
| 500+ | $9.82 | $9.82 |
| 1,000+ | $9.35 | $9.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (4+4).
2.00mm.
3.0A at 25°C ambient (all contacts loaded), 2.2A at 85°C.
Free Hanging (In-Line).
24-28 AWG.
Gold with 0.30µm thickness.
Screw lock (jackscrews).
