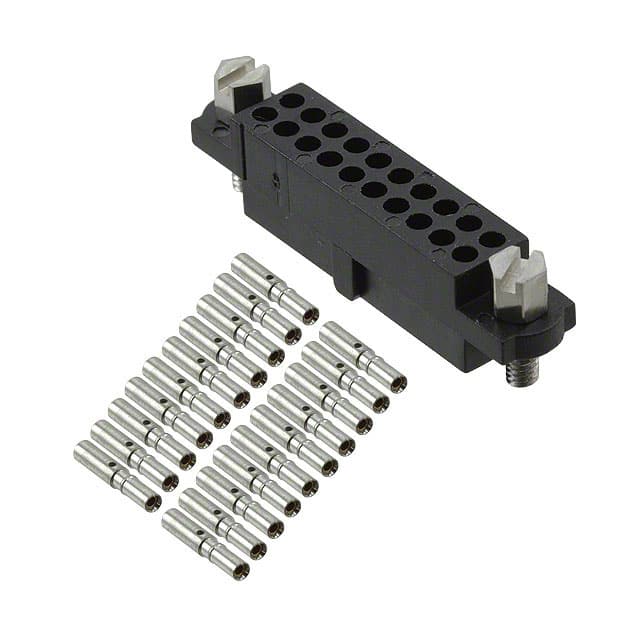

M80-4612042 Harwin M80-4612042 is a 20-position female crimp receptacle connector from the Datamate family, featuring 2.00mm pitch, jackscrews, and gold contacts.
Mfr Part #:

M80-4612042

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin M80-4612042 is a 20-position female crimp receptacle connector from the Datamate family, featuring 2.00mm pitch, jackscrews, and gold contacts.
✓ Total Stock: 3 pcs
$ Price Range: $16.81 - $26.06

M80-4612042 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-4612042 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Wire Gauge
Wire Type
View Similar Products (0)

M80-4612042 Description

Short technical summary and product information.

The Harwin M80-4612042 is a 20-position (10+10) female receptacle connector from the Datamate J-Tek series, designed for high-reliability cable-to-cable or cable-to-board applications. It features a 2.00mm pitch, two rows, and uses crimp termination for discrete wires from 24 to 28 AWG. The connector is free-hanging (in-line) and comes with slotted jackscrews for secure mating. Contacts are gold plated with 0.3µm thickness. The current rating is 3.0A per contact when all contacts are loaded at 25°C, derated to 2.2A at 85°C. Housings are black in color. This connector is part of Harwin's Datamate range known for reliability in demanding environments.

M80-4612042 Quick Information

Product Type: Rectangular Connector
Series: M80
Canonical Name: 20 Position Female Crimp Receptacle, 2.00mm Pitch, Free Hanging, Jackscrews
Subcategory: Free Hanging Cable Connector

M80-4612042 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

M80-4612042 Estimated Pricing

Qty Low High
1+ $26.06 $26.06
10+ $22.15 $22.15
25+ $20.76 $20.76
50+ $19.77 $19.77
100+ $18.83 $18.83
250+ $17.65 $17.65
500+ $16.81 $16.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-4612042 Features

  • 20-position female receptacle with jackscrews.
  • 2.00mm pitch and 2-row design.
  • Crimp termination for 24-28 AWG wire.
  • Gold-plated contacts with 0.3µm thickness.
  • Rated 3.0A at 25°C all contacts loaded.

M80-4612042 Applications

  • Suitable for cable-to-cable interconnections.
  • Used in high-reliability Datamate systems.
  • Ideal for compact electronic packaging.
  • Fits industrial control and automation equipment.

M80-4612042 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on the M80-4612042?

The connector has 20 positions arranged in two rows of 10.

What is the pitch of the M80-4612042?

The pitch is 2.00mm (0.079 inches), with the same row spacing.

What is the current rating of the M80-4612042?

The maximum current rating is 3.0A per contact when all contacts are loaded at 25°C ambient, derating to 2.2A at 85°C ambient.

What is the mounting type of the M80-4612042?

The connector is designed for free hanging (in-line) mounting, with crimp termination.

What wire gauge is compatible with the M80-4612042?

The connector accepts discrete wires of 24-28 AWG.

What is the contact finish on the M80-4612042?

Contacts are gold plated with a thickness of 0.3µm (11.8µin).

Does the M80-4612042 include any locking mechanism?

Yes, it is fitted with jackscrews for secure mating.
