| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

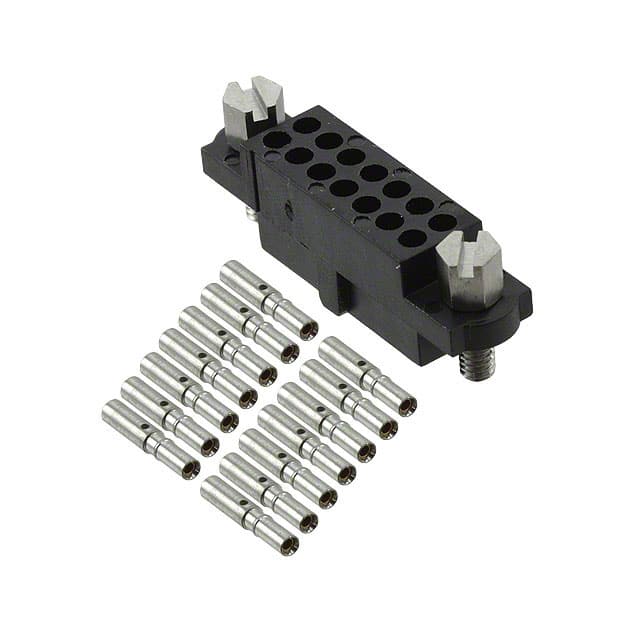

The Harwin M80-4611442 is a Datamate J-Tek series 14 position (7+7) dual row female receptacle connector featuring a 2.00mm pitch and 2.00mm row spacing. It is designed for free hanging (in-line) cable mounting and uses crimp termination to accommodate 24-28 AWG discrete wire.
The connector includes slotted jackscrews for secure mating and is supplied as a complete kit with a female receptacle housing and 14 straight signal contacts. The contacts feature a gold finish with 11.8µin (0.30µm) thickness.
Electrical ratings vary by loading and ambient temperature: one contact loaded at 25°C supports up to 3.3A maximum, while all contacts loaded at 85°C support up to 2.2A maximum. The connector body is black and designed for high-reliability applications requiring a compact and durable free hanging interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.94 | $21.94 |
| 10+ | $18.65 | $18.65 |
| 25+ | $17.48 | $17.48 |
| 50+ | $16.64 | $16.64 |
| 100+ | $15.85 | $15.85 |
| 250+ | $14.86 | $14.86 |
| 500+ | $14.15 | $14.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-4611442 has 14 positions arranged as 7+7 in a dual row configuration.
The pitch is 2.00mm, with a row spacing of 2.00mm.
When one contact is loaded at 25°C the maximum current is 3.3A. When all contacts are loaded at 25°C, the maximum current is 3.0A. At 85°C ambient, one contact loaded allows 2.6A and all contacts loaded allow 2.2A.
The connector uses crimp termination and is designed for free hanging (in-line) mounting.
The connector accepts 24-28 AWG discrete wire.
The contacts have a gold finish with a thickness of 11.8µin (0.30µm).
Yes, it includes jackscrews with a slotted head for secure mating.
