| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

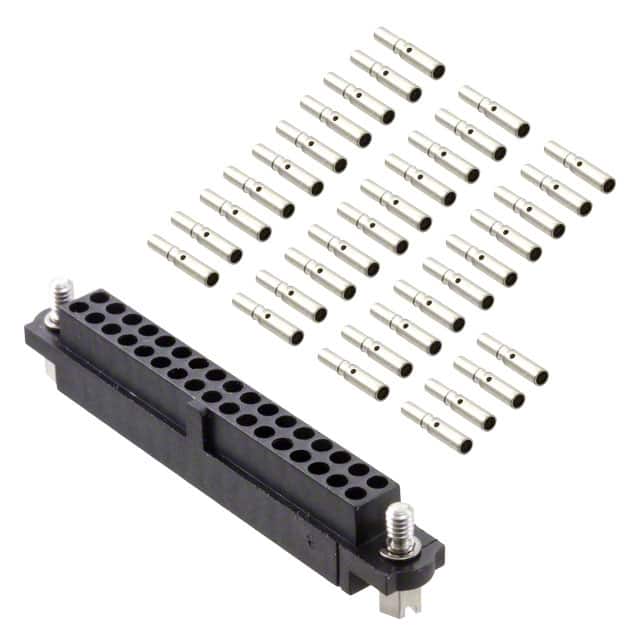

The M80-4603442 is a 34-position female receptacle connector from Harwin's Datamate J-Tek series. It is supplied as a complete kit including the housing and 34 straight signal contacts. Designed for free hanging (in-line) mounting with crimp termination, this connector provides a reliable interconnection solution for high-density applications.
Key specifications include a 2.00mm pitch across two rows, gold contact finish with 11.8µin thickness, and a current rating of up to 3.3A per contact at 25°C ambient (single contact loaded). The connector accepts 22 AWG discrete wire and features jackscrews and a polarizing key for secure mating and alignment.
This connector is suitable for cable-to-board or cable-to-cable interconnections in electronic equipment requiring compact, high-reliability connections. It is RoHS3 compliant and has an MSL rating of 1 (unlimited). The jackscrew mechanism ensures a robust mechanical lock, making it ideal for applications subject to vibration.
| Qty | Low | High |
|---|---|---|
| 1+ | $35.45 | $35.45 |
| 10+ | $30.13 | $30.13 |
| 25+ | $28.25 | $28.25 |
| 50+ | $26.90 | $26.90 |
| 100+ | $25.62 | $25.62 |
| 250+ | $24.01 | $24.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions arranged in 2 rows of 17.
2.00mm.
Up to 3.3A per contact at 25°C ambient with one contact loaded; derated to 2.2A when all contacts loaded at 85°C.
Free hanging (in-line).
22 AWG discrete wire.
Gold with 11.8µin (0.30µm) thickness.
Yes, it includes jackscrews and a polarizing key.
