M80-4602605 The M80-4602605 is a 26 position female receptacle connector from Harwin's Datamate J-Tek series. It features crimp termination, gold contacts, and a 2.00mm pitch.
Mfr Part #:

M80-4602605

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
The M80-4602605 is a 26 position female receptacle connector from Harwin's Datamate J-Tek series. It features crimp termination, gold contacts, and a 2.00mm pitch.
✓ Total Stock: 52 pcs
$ Price Range: $19.92 - $30.88

M80-4602605 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
52 pcs
On Request
52 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-4602605 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Tape & Reel
Wire Gauge
Wire Type
View Similar Products (0)

M80-4602605 Description

Short technical summary and product information.

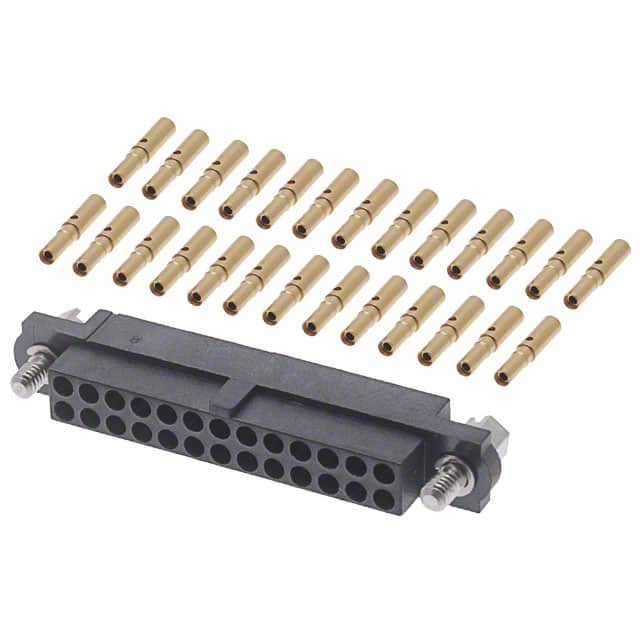

The Harwin M80-4602605 is a 26 position (13+13) female receptacle connector from the Datamate J-Tek series. It is designed for cable-to-cable or cable-to-board applications requiring high reliability. The connector features a free hanging (in-line) mounting style with crimp termination for 22 AWG discrete wires. Contacts are gold plated with a thickness of 11.8µin (0.30µm). The housing is black and includes jackscrews and a polarizing key for secure mating and alignment. The pitch is 2.00mm with a row spacing of 2.00mm. Current ratings vary by loading and temperature: up to 3.3A per contact at 25°C with one contact loaded, and 3.0A per contact when all contacts are loaded at 25°C. At 85°C, ratings are 2.6A and 2.2A respectively. This connector is suitable for high-density packaging in electronic equipment. The complete kit includes the receptacle housing and 26 signal contacts (M80-01100 large bore crimp contacts).

M80-4602605 Quick Information

Product Type: Rectangular Connector - Female Receptacle
Series: M80
Canonical Name: Harwin M80-4602605 Datamate J-Tek 26 Position Female Receptacle Cable Connector Kit, Crimp, Gold
Subcategory: Free Hanging, Panel Mount

M80-4602605 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: REACH Unaffected

M80-4602605 Estimated Pricing

Qty Low High
1+ $30.88 $30.88
10+ $26.25 $26.25
25+ $24.60 $24.60
50+ $23.43 $23.43
100+ $22.31 $22.31
250+ $20.92 $20.92
500+ $19.92 $19.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-4602605 Features

  • 26 position female receptacle connector.
  • Crimp termination for 22 AWG wire.
  • Gold plated contacts (11.8µin).
  • 2.00mm pitch with jackscrews.
  • Rated up to 3.3A per contact.

M80-4602605 Applications

  • Used in high-density electronic equipment.
  • Suitable for cable-to-board and cable-to-cable connections.
  • Designed for reliable signal transmission in harsh environments.

M80-4602605 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M80-4602605 have?

26 positions (13+13).

What is the pitch of the M80-4602605?

2.00mm (0.079 inches).

What is the current rating of the M80-4602605?

Up to 3.3A per contact at 25°C with one contact loaded; 3.0A per contact with all contacts loaded at 25°C. At 85°C, ratings are 2.6A and 2.2A respectively.

What is the mounting type of the M80-4602605?

Free hanging (in-line).

What wire gauge is compatible with this connector?

22 AWG discrete wire.

What features does the M80-4602605 include?

Jackscrews and a polarizing key.

What is the contact finish?

Gold, 11.8µin (0.30µm) thickness.
