| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
141 pcs
|
141 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |
The Harwin M80-4602005 is a 20 position female receptacle connector from the Datamate J-Tek series, designed for free hanging (in-line) mounting. This connector features a dual row configuration with 2.00mm pitch and 0.079" row spacing. The contacts are female sockets with gold plating (0.30µm thickness) and are terminated using crimp method for 22 AWG discrete wire.
The connector includes jack screw and polarizing key features for secure mating and alignment. Electrically, each contact is rated for up to 3.3 A at 25°C ambient (single contact) and 3.0 A when all contacts are powered at 25°C. At 85°C ambient, the ratings derate to 2.6 A per contact or 2.2 A for all contacts simultaneously.

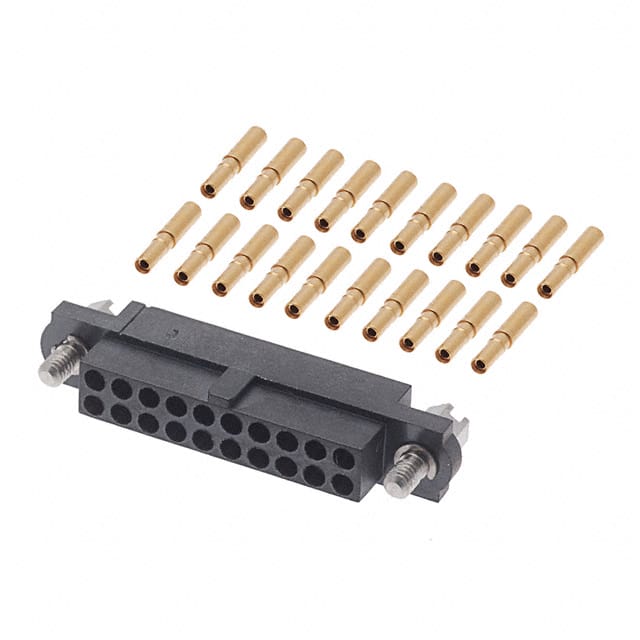

This connector comes as a complete kit with a double row straight cable housing and 20 straight signal contacts, fitted with slotted-head floating jackscrews. It is suitable for high-reliability applications requiring a rugged, polarized connection. The black housing and gold contacts provide durability and corrosion resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.74 | $26.74 |
| 10+ | $22.73 | $22.73 |
| 25+ | $21.30 | $21.30 |
| 50+ | $20.29 | $20.29 |
| 100+ | $19.32 | $19.32 |
| 250+ | $18.11 | $18.11 |
| 500+ | $17.25 | $17.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a 20 position female receptacle connector from the Datamate J-Tek series, designed for free hanging (in-line) mounting.
The connector has 20 positions arranged in 2 rows.
The pitch is 2.00mm (0.079 inches).
At 25°C ambient, each contact is rated for 3.3 A maximum, and 3.0 A when all contacts are powered. At 85°C, the rating is 2.6 A per contact and 2.2 A for all contacts.
