| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Storage Temperature | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

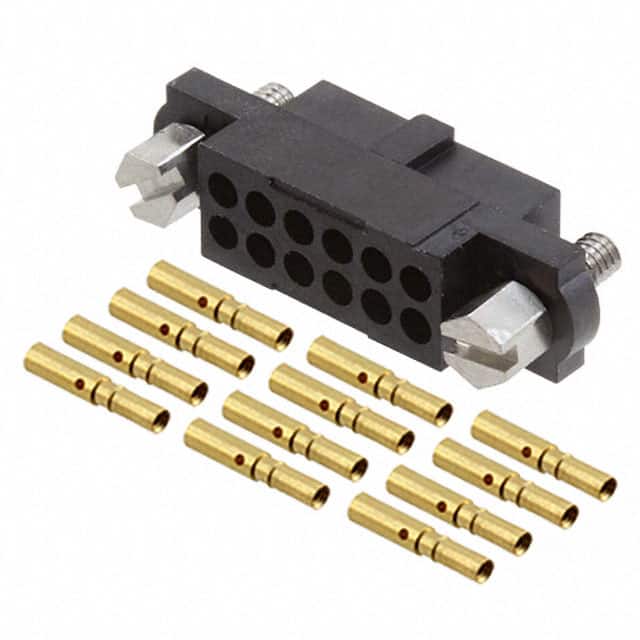

The Harwin M80-4601205 is a Datamate J-Tek 12 position female receptacle connector designed for discrete wire crimp termination. It features 2 rows of 6 contacts on a 2.00mm pitch with gold-plated contacts (0.30µm thickness) for reliable low-voltage signal connections. This free hanging in-line connector includes jackscrews and a polarizing key for secure mating.
Rated for up to 3.3A per contact at 25°C ambient (2.6A at 85°C), the M80-4601205 supports 22 AWG wire and is part of Harwin's high-reliability Datamate family. The black housing accommodates straight signal contacts and is supplied as a complete kit including the housing and 12 crimp contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.53 | $20.53 |
| 10+ | $17.45 | $17.45 |
| 25+ | $16.36 | $16.36 |
| 50+ | $15.58 | $15.58 |
| 100+ | $14.83 | $14.83 |
| 250+ | $13.90 | $13.90 |
| 500+ | $13.24 | $13.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 12 positions arranged in 2 rows of 6 contacts.
The pitch is 2.00mm.
Rated 3.3A per contact at 25°C ambient (1 contact powered), derated to 2.2A when all contacts powered at 85°C.
It is a free hanging (in-line) connector designed for crimp termination.
It accepts 22 AWG discrete wire.
Yes, contacts have a gold finish with 0.30µm thickness.
