Mfr Part #:

M80-4601042

10 position female receptacle connector from Harwin's Datamate J-Tek series. Features 2.00mm pitch, crimp termination for 22 AWG wire, and gold plated contacts.

✓ Total Stock: 3 pcs

$ Price Range: $12.66 - $19.63

M80-4601042 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	3 pcs On Request	3 pcs	On Request	1	On Request	On Request	1550	On Request	On Request

M80-4601042 Description

Short technical summary and product information.

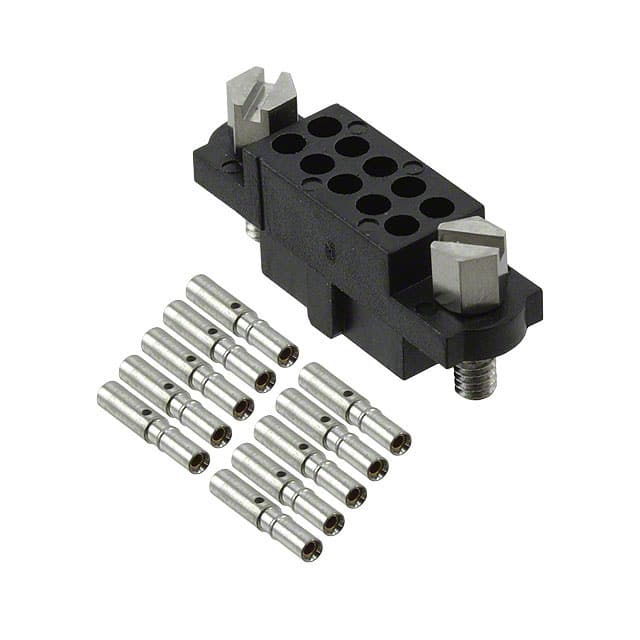

The Harwin M80-4601042 is a 10 position (5+5) female receptacle connector from the Datamate J-Tek series. It is designed for free hanging (in-line) cable-to-board or cable-to-cable applications. The connector features a 2.00mm pitch with 2 rows and a row spacing of 2.00mm. Termination is via crimp contacts suitable for 22 AWG wire. Contacts are female sockets with gold plating (0.30µm thickness) for reliable low-resistance connections. The housing is black and includes floating slotted jackscrews for secure mating and a polarizing key to prevent mis-mating. Current rating is 3.3A per contact at 25°C (single contact loaded) and 3.0A when all contacts are loaded. At elevated temperature (85°C) the ratings derate to 2.6A and 2.2A respectively. This connector is part of a high-reliability 2mm pitch rectangular connector family suitable for dense packaging in electronic equipment.

M80-4601042 Quick Information

Product Type: Female Receptacle Connector

Series: J-Tek

Canonical Name: Harwin M80-4601042 Datamate J-Tek 10 Position Female Receptacle Cable Connector Kit

Subcategory: Female Receptacle

M80-4601042 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Level 1 Unlimited

REACH Status: REACH Unaffected

M80-4601042 Estimated Pricing

Qty	Low	High
1+	$19.63	$19.63
10+	$16.68	$16.68
25+	$15.64	$15.64
50+	$14.89	$14.89
100+	$14.18	$14.18
250+	$13.29	$13.29
500+	$12.66	$12.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-4601042 Features

10 position female receptacle with 2.00mm pitch.
Crimp termination for 22 AWG wire.
Gold plated contacts for reliable connection.
Floating jackscrews for secure mating.
Polarizing key prevents mis-mating.

M80-4601042 Applications

Used in high-density cable-to-board interconnections.
Suitable for industrial and automotive applications.
Ideal for applications requiring secure locking with jackscrews.

M80-4601042 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the M80-4601042 have?

10 positions arranged as 5+5 in two rows.

What is the pitch of this connector?

2.00mm (0.079 inches).

What is the current rating?

3.3A per contact at 25°C (single contact loaded), 3.0A when all contacts loaded. At 85°C, ratings are 2.6A and 2.2A respectively.

What is the mounting type?

Free hanging (in-line).

What wire gauge does it accept?

22 AWG.

Does it have jackscrews?

Yes, it features floating slotted jackscrews for secure mating.

What is the contact finish?

Gold plating with 0.30µm thickness.

Category	Free Hanging, Panel Mount
Manufacturer Name	Harwin Inc.
Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	11.8µin (0.30µm)
Contact Type	Female Socket
Features	Jackscrews, Polarizing Key
Lead Spacing	2.0 mm
Lead Style	Gold
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch	2.00mm (0.079")
Row Spacing	0.079" (2.00mm)
SVHC Present	Not Present
Termination Style	Crimp
Wire Gauge	22 AWG
Wire Type	Discrete
