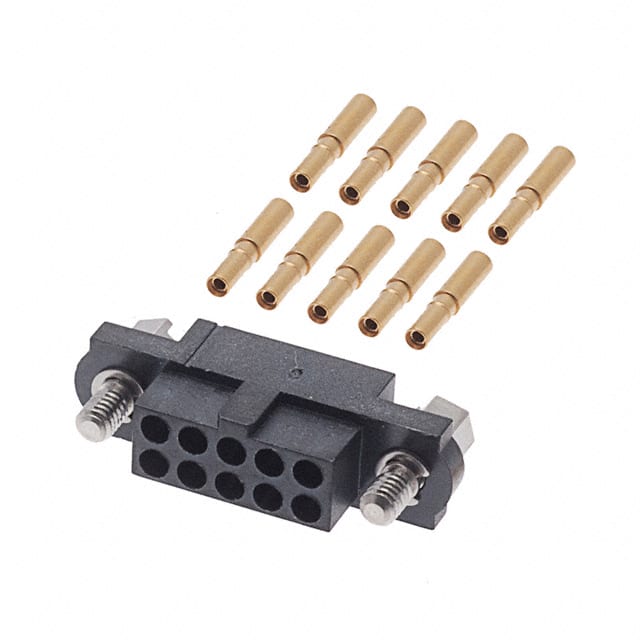

The M80-4601005 is a 10-position (5+5) female receptacle connector from Harwin's Datamate J-Tek series, designed for free hanging (in-line) cable-to-board or cable-to-cable applications. It features a 2.00mm pitch with 2 rows and 2.00mm row spacing, accommodating 22 AWG discrete wires via crimp termination. The contacts are female sockets with a gold finish (0.30µm thickness) for reliable low-resistance connections. The connector includes jackscrews with a slotted hexagonal head and a polarizing key to ensure correct mating and secure locking. Electrical ratings vary with temperature and contact loading: at 25°C, the maximum current is 3.3A per contact (one contact loaded) or 3.0A (all contacts loaded); at 85°C, these ratings drop to 2.6A and 2.2A respectively. The housing is black and the connector is part of the M80 series of 2mm pitch rectangular connectors suitable for high-density packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.63 | $19.63 |
| 10+ | $16.68 | $16.68 |
| 25+ | $15.64 | $15.64 |
| 50+ | $14.89 | $14.89 |
| 100+ | $14.18 | $14.18 |
| 250+ | $13.29 | $13.29 |
| 500+ | $12.66 | $12.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions arranged as 5+5 in two rows.
2.00mm (0.079 inches).
Up to 3.3A per contact at 25°C with one contact loaded; 3.0A with all contacts loaded. At 85°C, ratings are 2.6A (one contact) and 2.2A (all contacts).
Crimp termination for 22 AWG discrete wire.
Free hanging (in-line) mounting.
Gold plating with a thickness of 0.30µm (11.8µin).
Yes, it includes jackscrews with a slotted head and a polarizing key to prevent mismating.
