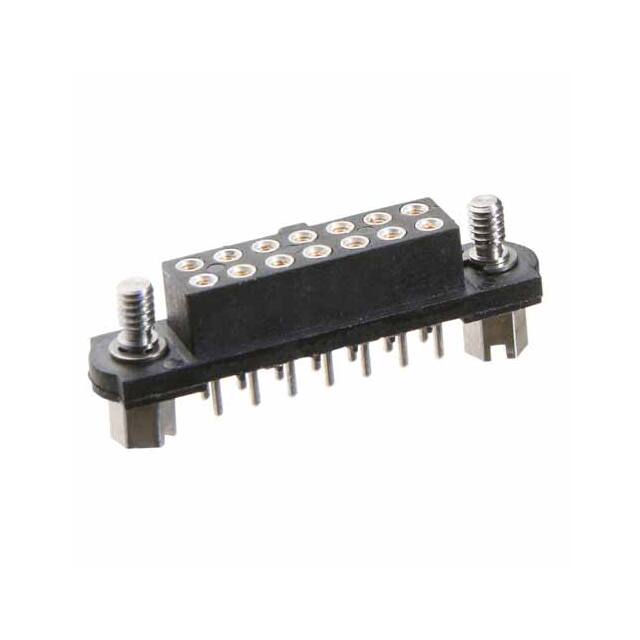

The Harwin M80-4001405 is a 14-position (7+7) female receptacle connector from the Datamate J-Tek series, designed for high-reliability board-to-board or cable interconnections. This through-hole connector features a 2.00mm pitch and a double-row configuration with a row spacing of 2.00mm. It is terminated via solder and includes a screw lock fastening mechanism with slotted jackscrews for secure mating.
The connector is rated for 120V and has a current rating of up to 3.3A per contact under specific conditions. It is constructed with gold-plated contacts (12.0µin thickness) and a black insulator rated UL94 V-0 for flammability. The operating temperature range is -55°C to 125°C, making it suitable for demanding environments.
This receptacle is part of the Datamate J-Tek family, which is known for its robust design and reliability in applications requiring secure connections. The part includes features such as jackscrews, a mating flange, a mounting flange, and a polarizing key to ensure correct alignment and secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.72 | $13.72 |
| 11+ | $11.58 | $11.58 |
| 110+ | $9.85 | $9.85 |
| 506+ | $8.84 | $8.84 |
| 1,001+ | $8.43 | $8.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-4001405 has 14 positions (7+7) in a double-row configuration.
The pitch is 2.00mm (0.079 inches).
The current rating varies by condition: 3.3A max at 25°C with one contact loaded, 3.0A max at 25°C with all contacts loaded, 2.6A max at 85°C with one contact loaded, and 2.2A max at 85°C with all contacts loaded.
The voltage rating is 120V.
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to 125°C.
The fastening type is screw lock with slotted jackscrews.
