| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

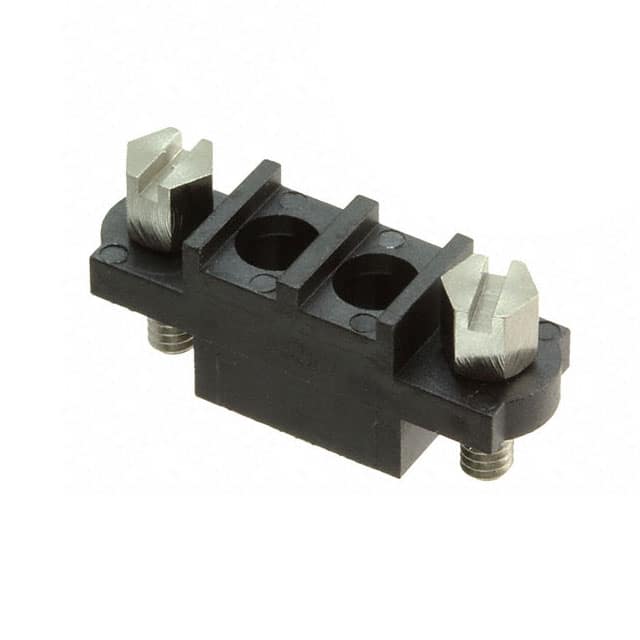

The M80-4000000F1-02-325-00-000 is a 2 position female power receptacle from Harwin's Datamate Power series. It features a 4.00mm pitch and is designed for free hanging (in-line) mounting with solder termination. The connector accepts 12 AWG discrete wire and is fitted with gold plated power contacts rated for 20A per contact at 25°C ambient. The housing includes floating jackscrews with a hexagonal slotted head for secure screw lock fastening.
This connector is part of the Datamate high-reliability rectangular connector system, suitable for power and signal applications in demanding environments. The gold contact finish ensures reliable low-resistance connections. The single row design with 2 positions allows for compact cable-to-board or cable-to-cable power interconnections.
The connector kit includes the female receptacle housing, straight power contacts, and jackscrews. It is black in color and uses solder termination for permanent wire attachment. The 4.00mm pitch provides a balance between density and power handling capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.77 | $16.77 |
| 10+ | $14.25 | $14.25 |
| 25+ | $13.36 | $13.36 |
| 50+ | $12.72 | $12.72 |
| 100+ | $12.12 | $12.12 |
| 250+ | $11.36 | $11.36 |
| 500+ | $10.82 | $10.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
4.00mm (0.157 inches).
20A per power contact at 25°C ambient.
3.0A at 25°C ambient and 2.2A at 85°C ambient.
Free Hanging (In-Line).
Gold.
12 AWG.
