| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,000 pcs
|
11000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Durability | |
| Gender | |
| Halogen Free | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature Range | |
| Pitch | |
| SVHC Present | |
| Type | |
| Voltage Rating |

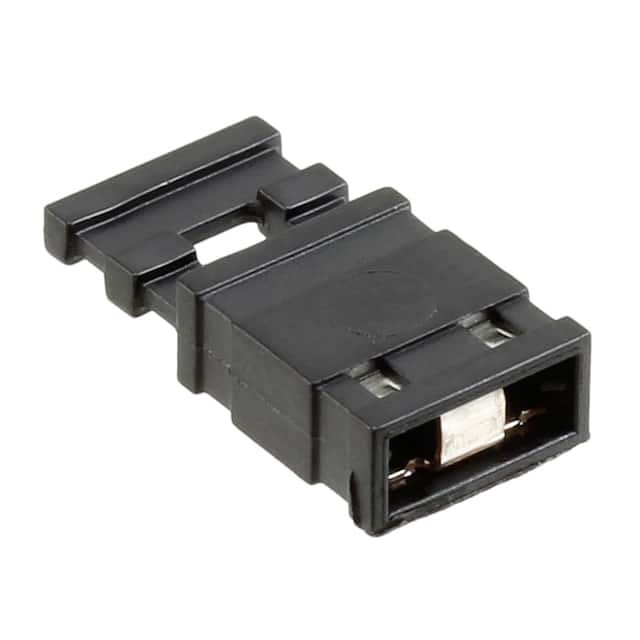

The M7686-05 is a closed top jumper socket from Harwin Inc., designed for interconnecting two adjacent 0.64mm square or round pins on 2.54mm pitch centers. It is part of a 2.54mm pitch jumper socket family with a closed top design for secure pin retention.
Electrical ratings: 3A maximum current at ambient temperature, 250V DC or AC peak working voltage, and 750V rms voltage proof at 50Hz. Initial contact resistance is 20mΩ maximum, and after conditioning (gold finish) it is 25mΩ maximum. Insulation resistance is 100,000MΩ minimum initially and 1,000MΩ minimum after conditioning. Operating temperature range is -40°C to +85°C.
Mechanical features: 2.54mm pitch, 10.00mm height, 2 positions (1x2), black polyester housing with UL94 V-0 flammability rating. Contacts are phosphor bronze with gold finish (5.11µin). Durability is 300 mating cycles minimum. The housing is closed top grip type, suitable for side-by-side mounting on 2.54mm centers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
| 10+ | $0.36 | $0.36 |
| 25+ | $0.34 | $0.34 |
| 50+ | $0.32 | $0.32 |
| 100+ | $0.31 | $0.31 |
| 250+ | $0.29 | $0.29 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.26 | $0.26 |
| 3,000+ | $0.24 | $0.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 3A at ambient temperature for non-M758X ranges.
The working voltage rating is 250V DC nominal or AC peak at sea level.
The pitch is 2.54mm (0.100 inches).
The M7686-05 has 2 positions arranged as 1 x 2.
Initial contact resistance is 20mΩ maximum. After conditioning with gold finish, it is 25mΩ maximum.
The operating temperature range is -40°C to +85°C for non-M758X ranges.
Initial insulation resistance is 100,000MΩ minimum. After conditioning, it is 1,000MΩ minimum.
