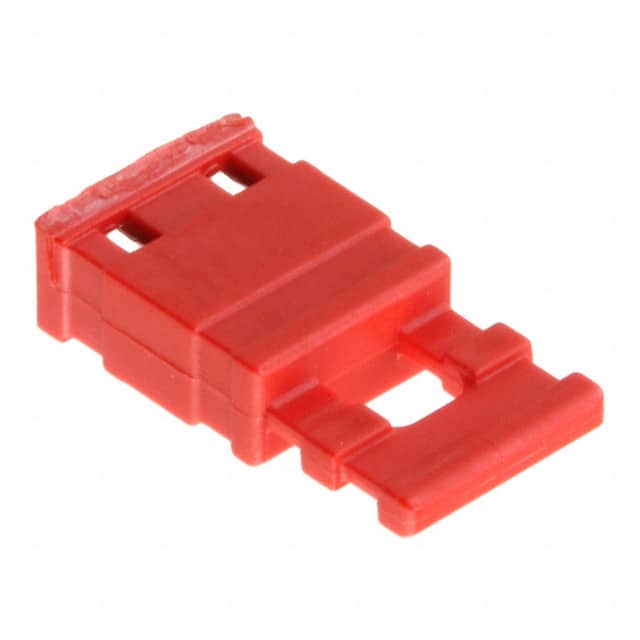

M7685-05 Harwin M7685-05 is a 2.54mm pitch closed top jumper socket with 2 positions, rated for 3A and 250V. It features gold-plated contacts and a red polyester housing with UL94 V-0 rating.
Mfr Part #:

M7685-05

Available from 2 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin M7685-05 is a 2.54mm pitch closed top jumper socket with 2 positions, rated for 3A and 250V. It features gold-plated contacts and a red polyester housing with UL94 V-0 rating.
✓ Total Stock: 4,145 pcs
$ Price Range: $0.25 - $0.44

M7685-05 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
145 pcs
On Request
145 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M7685-05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Finish Thickness
Current Rating (Amps)
Durability
Gender
Height
Housing Material
Lead Spacing
Lead Style
Material Flammability Rating
Number of Positions or Pins (Grid)
Operating Temperature Range
Pitch
Tape & Reel
Type
Voltage Rating
View Similar Products (0)

M7685-05 Description

Short technical summary and product information.

The Harwin M7685-05 is a 2.54mm pitch jumper socket designed to interconnect two adjacent 0.64mm square or round pins. This closed top, flexible handle shunt features a red polyester housing and gold-plated contacts for reliable electrical performance.



Electrical specifications include a current rating of 3A (maximum) and a voltage rating of 250V nominal. It withstands 750V rms voltage proof at sea level. Contact resistance is 20mΩ maximum initially and 25mΩ maximum after conditioning for gold finish. Insulation resistance is 100,000MΩ minimum initially and 1,000MΩ minimum after hot conditioning.



Mechanically, the part has a height of 10.00mm and uses 2.54mm pitch. Durability is rated for 300 mating operations minimum. The operating temperature range is -40°C to +85°C. Material flammability is UL94 V-0.



This product is commonly used as an alternative programming method to DIP switches and is suitable for high-reliability multi-usage applications.

M7685-05 Quick Information

Product Type: Jumper Socket
Series: M20
Canonical Name: 2.54mm Pitch Jumper Socket, Closed Top, Female, 2 Positions, Red, Gold Contacts
Subcategory: Closed Top Jumper Sockets

M7685-05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

M7685-05 Estimated Pricing

Qty Low High
1+ $0.44 $0.44
10+ $0.38 $0.38
25+ $0.35 $0.35
50+ $0.33 $0.33
100+ $0.32 $0.32
250+ $0.30 $0.30
500+ $0.28 $0.28
1,000+ $0.27 $0.27
3,000+ $0.25 $0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

M7685-05 Features

  • 2.54mm (0.1") pitch for standard pin headers.
  • Rated for 3A current and 250V voltage.
  • Gold plated contacts for reliable connections.
  • Closed top design with flexible handle.
  • UL94 V-0 flammability rated polyester housing.

M7685-05 Applications

  • Used as alternative to DIP switches for programming.
  • Ideal for interconnecting adjacent 0.64mm pins.
  • Suitable for high-reliability multi-usage applications.

M7685-05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the M7685-05?

2.54mm (0.100").

How many positions does this jumper socket have?

2 positions (1 x 2).

What is the current rating?

3A maximum.

What is the voltage rating?

250V nominal.

What is the operating temperature range?

-40°C to +85°C.

How many mating operations is it rated for?

300 operations minimum.

What is the contact resistance?

Initial contact resistance is 20mΩ max; after conditioning with gold finish, 25mΩ max.
