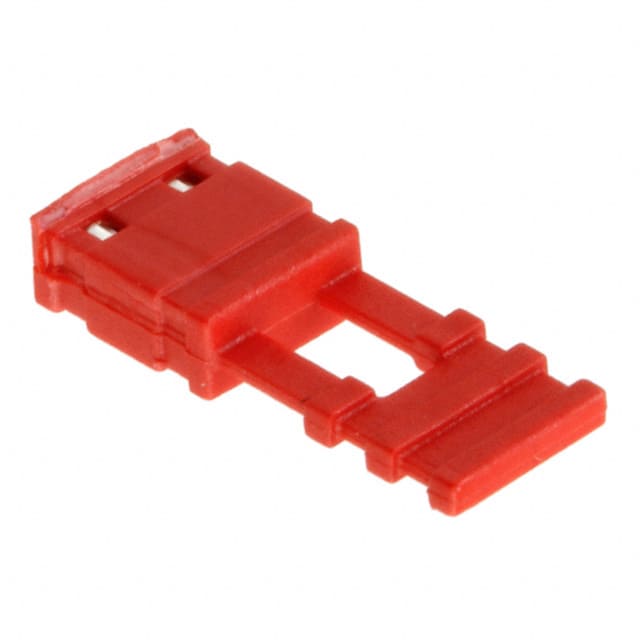

M7681-05 Harwin M7681-05 is a 2 position female jumper socket with a 14mm flexible handle, rated for 3A and 250V. It features a 2.54mm pitch and gold-plated contacts.
Mfr Part #:

M7681-05

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin M7681-05 is a 2 position female jumper socket with a 14mm flexible handle, rated for 3A and 250V. It features a 2.54mm pitch and gold-plated contacts.
✓ Total Stock: 13,000 pcs
$ Price Range: $0.26 - $0.46

M7681-05 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
13,000 pcs
On Request
13000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M7681-05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Finish Thickness
Current Rating (Amps)
Durability
Gender
Height
Housing Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions or Pins (Grid)
Operating Temperature Range
Pitch
Tape & Reel
Type
Voltage Rating
View Similar Products (0)

M7681-05 Description

Short technical summary and product information.

The Harwin M7681-05 is a 2.54mm pitch jumper socket designed for interconnecting two adjacent 0.64mm square or round pins. This closed-top, flexible handle shunt is part of the M20 series and features a red polyester housing with gold-plated phosphor bronze contacts.



Rated for 3A maximum current and 250V DC or AC peak working voltage, it offers a voltage proof of 750V rms at sea level. Initial contact resistance is 20mΩ maximum, and insulation resistance is at least 100,000MΩ between non-connected pins.



The component is through-hole mountable and has a height of 14.00mm. It is rated for 300 mating operations with gold contact finish and operates over a temperature range of -40°C to +85°C. The housing material is rated UL94 V-0 for flammability.

M7681-05 Quick Information

Product Type: Jumper Socket (Shunt)
Series: M7681
Canonical Name: 2.54mm Pitch 2 Position Female Jumper Socket, Closed Top, Flexible Handle, Red, Gold Contacts
Subcategory: Shunts

M7681-05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M7681-05 Estimated Pricing

Qty Low High
1+ $0.46 $0.46
10+ $0.39 $0.39
25+ $0.36 $0.36
50+ $0.35 $0.35
100+ $0.33 $0.33
250+ $0.31 $0.31
500+ $0.29 $0.29
1,000+ $0.28 $0.28
3,000+ $0.26 $0.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

M7681-05 Features

  • Rated for 3A maximum current.
  • 250V DC or AC peak working voltage.
  • 2.54mm pitch with 14mm height.
  • Gold-plated contacts for 300 operations.
  • Closed top with flexible handle design.

M7681-05 Applications

  • Alternative programming method to DIP switches.
  • Interconnects adjacent 0.64mm square pins.
  • Used in PCB configuration and setup.

M7681-05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the M7681-05?

The maximum current rating is 3A.

What is the voltage rating of the M7681-05?

The working voltage is 250V DC or AC peak.

What is the pitch of the M7681-05?

The pitch is 2.54mm (0.100 inches).

How many positions does the M7681-05 have?

It has 2 positions (1 x 2).

What is the operating temperature range of the M7681-05?

The operating temperature range is -40°C to +85°C.

What is the contact resistance of the M7681-05?

The initial contact resistance is 20mΩ maximum.

What is the durability of the M7681-05?

It is rated for 300 mating operations with gold contacts.
