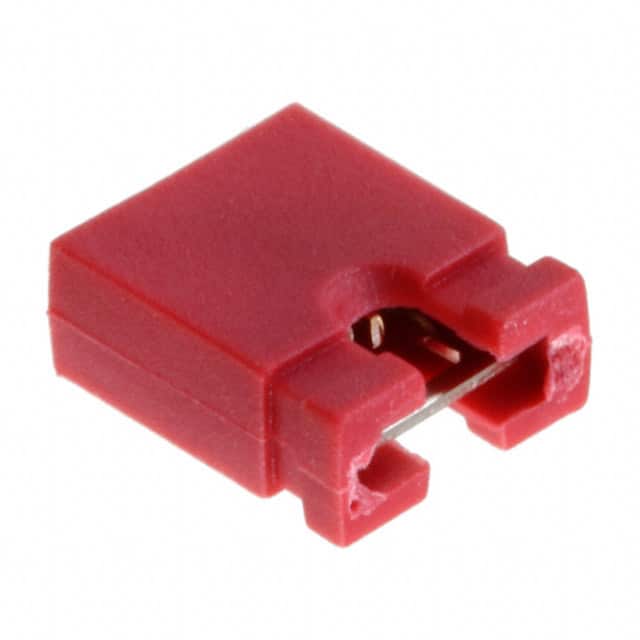

M7581-05 Harwin M7581-05 is a 2-position female jumper socket with open top design, 2.54mm pitch, rated for 1A. It features gold contacts and a red PBT housing with UL94 V-0 flammability rating.
Mfr Part #:

M7581-05

Available from 2 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin M7581-05 is a 2-position female jumper socket with open top design, 2.54mm pitch, rated for 1A. It features gold contacts and a red PBT housing with UL94 V-0 flammability rating.
✓ Total Stock: 25,500 pcs
$ Price Range: $0.09 - $0.16

M7581-05 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
25,000 pcs
On Request
25000 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M7581-05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Current Rating (Amps)
Gender
Height
Housing Material
Lead Spacing
Lead Style
Material Flammability Rating
Number of Positions or Pins (Grid)
Pitch
Type
View Similar Products (0)

M7581-05 Description

Short technical summary and product information.

The Harwin M7581-05 is a 2-position female receptacle jumper socket from the M20 series. It features an open top design allowing access to contacts for probing, making it an alternative to DIP switches for programming applications. The part has a 2.54mm (0.1") pitch and is rated for 1A current. The housing is made of glass-filled PBT in red color with a UL94 V-0 flammability rating. Contacts are finished with gold for reliable connections. This jumper socket is suitable for use in various electronic interconnect applications where a removable shunt is required. The open top configuration facilitates testing and configuration changes without removing the component.

M7581-05 Quick Information

Product Type: Jumper Socket
Series: M20
Canonical Name: Harwin M7581-05 2 Position Female Jumper Socket, Open Top, Red, Gold Contacts
Subcategory: Shunts, Jumpers

M7581-05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M7581-05 Estimated Pricing

Qty Low High
1+ $0.16 $0.16
10+ $0.13 $0.13
25+ $0.13 $0.13
50+ $0.12 $0.12
100+ $0.11 $0.11
250+ $0.11 $0.11
500+ $0.10 $0.10
1,000+ $0.10 $0.10
2,500+ $0.09 $0.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

M7581-05 Features

  • 2 position female jumper socket.
  • 2.54mm pitch for standard headers.
  • Open top design for probe access.
  • Gold plated contacts.
  • Red PBT housing, UL94 V-0 rated.

M7581-05 Applications

  • Alternative to DIP switches for programming.
  • Used in configuration jumper applications.
  • Suitable for test and measurement setups.

M7581-05 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of positions?

2 positions (1 x 2).

What is the pitch?

2.54 mm (0.1 inch).

What is the current rating?

1 A.

What is the housing material?

Polybutylene Terephthalate (PBT), glass filled.

What is the contact finish?

Gold.

What is the flammability rating?

UL94 V-0.
