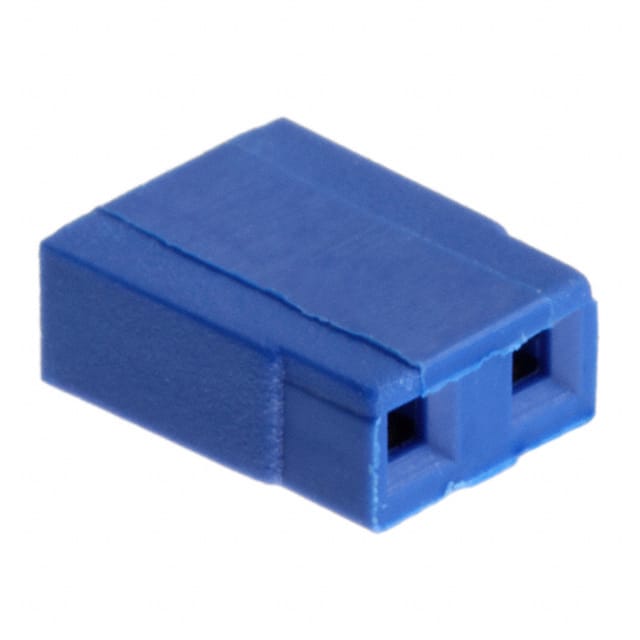

The Harwin M7571-05 is a 2.54mm pitch jumper socket from the M20 series, designed as a 2-position (1x2) female receptacle. It features an open top construction, allowing access to the contacts for probing or testing. The housing is made from blue, glass-filled polyester with a UL94 V-0 flammability rating.
Electrically, the M7571-05 is rated for a maximum current of 3A at ambient temperature and a nominal voltage of 250V at sea level. It has a voltage proof of 750V rms and an initial contact resistance of 20mΩ maximum. The gold-plated phosphor bronze contacts ensure reliable performance over a minimum of 300 mating operations.
This jumper socket is intended for interconnecting two adjacent 0.64mm square or round pins on 2.54mm pitch centers. It is suitable for use as an alternative programming method to DIP switches and can be mounted side-by-side. The operating temperature range is -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
| 10+ | $0.31 | $0.31 |
| 25+ | $0.29 | $0.29 |
| 50+ | $0.28 | $0.28 |
| 100+ | $0.27 | $0.27 |
| 250+ | $0.25 | $0.25 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.23 | $0.23 |
| 3,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 3A at ambient temperature.
The nominal working voltage is 250V at sea level.
The pitch is 2.54mm (0.100 inches).
It has 2 positions in a 1x2 configuration.
The operating temperature range is -40°C to +85°C.
The contacts are made of phosphor bronze with a gold finish.
It is rated for a minimum of 300 mating operations.
