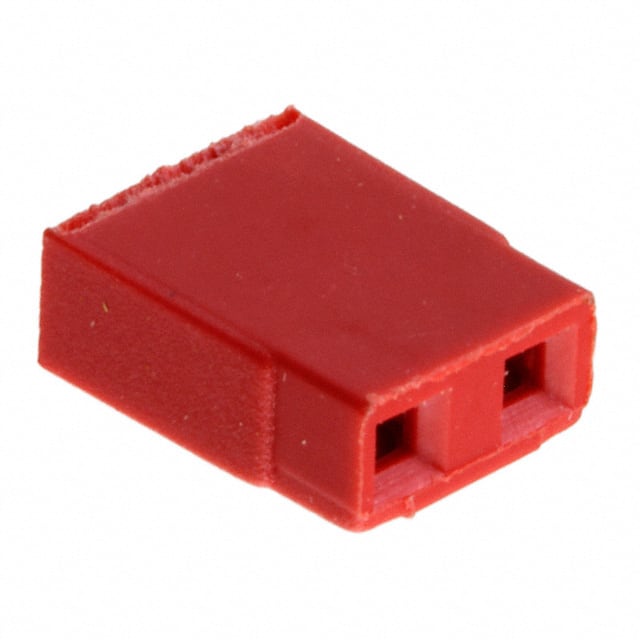

M7566-05 The M7566-05 is a 2.54mm pitch open top jumper socket from Harwin Inc. It features 2 positions (1x2), female sockets with gold plated contacts, rated for 3A and 250V.
Mfr Part #:

M7566-05

Available from 2 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
The M7566-05 is a 2.54mm pitch open top jumper socket from Harwin Inc. It features 2 positions (1x2), female sockets with gold plated contacts, rated for 3A and 250V.
✓ Total Stock: 122,113 pcs
$ Price Range: $0.24

M7566-05 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
121,010 pcs
On Request
121010 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,103 pcs
$0.24 ℹ
Qty Price
0+ 0.24
1103 pcs $0.24
QtyPrice
0+ 0.24
1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M7566-05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating (Amps)
Durability
Gender
Height
Housing Material
Lead Spacing
Lead Style
Material Flammability Rating
Number of Positions or Pins (Grid)
Operating Temperature Range
Pitch
Type
Voltage Rating
View Similar Products (0)

M7566-05 Description

Short technical summary and product information.

The M7566-05 from Harwin Inc. is a 2.54mm pitch open top jumper socket designed to interconnect two adjacent 0.64mm square or round section pins. It features a red polyester glass filled housing with UL94 V-0 flammability rating and gold plated phosphor bronze contacts.



Electrical ratings include a maximum current of 3A at ambient temperature and a working voltage of 250V DC nominal or AC peak. The voltage proof is 750V rms at 50Hz. Contact resistance is 20mΩ maximum initially and 25mΩ maximum after conditioning for gold finish. Insulation resistance is 100,000MΩ minimum initially and 1,000MΩ minimum hot after conditioning.



The operating temperature range is -40°C to +85°C, and the durability is rated for 300 mating operations minimum with gold on the contact area. The component is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).

M7566-05 Quick Information

Product Type: Jumper Socket
Canonical Name: Harwin M7566-05 2.54mm Pitch Open Top Jumper Socket, 2 Positions, Female, Gold Contacts, 3A, 250V
Subcategory: Open Top Jumper Socket

M7566-05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

M7566-05 Estimated Pricing

Qty Low High
1+ $0.37 $0.37
10+ $0.31 $0.31
25+ $0.29 $0.29
50+ $0.28 $0.28
100+ $0.27 $0.27
250+ $0.25 $0.25
500+ $0.24 $0.24
1,000+ $0.23 $0.23
3,000+ $0.21 $0.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

M7566-05 Features

  • 2.54mm pitch open top design.
  • Rated for 3A and 250V.
  • Gold plated phosphor bronze contacts.
  • UL94 V-0 flammability rated housing.
  • Operating temperature -40°C to +85°C.

M7566-05 Applications

  • Interconnects 0.64mm pins on 2.54mm centers.
  • Can be mounted side by side in either direction.
  • Suitable for shunt or jumper applications.

M7566-05 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M7566-05 have?

2 positions (1 x 2).

What is the pitch of the M7566-05?

2.54mm (0.100").

What is the current rating of the M7566-05?

3A maximum.

What is the voltage rating of the M7566-05?

250V DC nominal or AC peak.

What is the operating temperature range?

-40°C to +85°C.

What is the contact finish on the M7566-05?

Gold plating with 5.11µin (0.130µm) thickness.

How many mating cycles is the M7566-05 rated for?

300 mating operations minimum with gold contacts.
