| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Amps) | |
| Durability | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature Range | |
| Pitch | |
| Termination Style | |
| Type | |
| Voltage Rating |

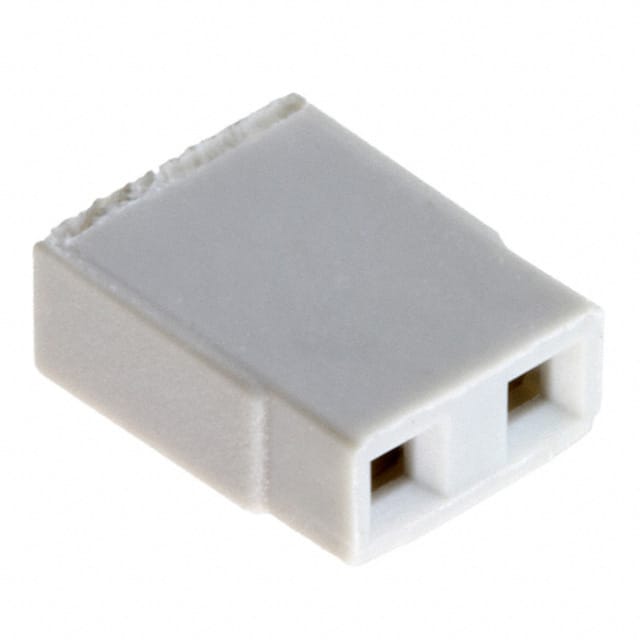

The M7565-05 is a 2.54mm pitch open top jumper socket from Harwin Inc., designed to interconnect two adjacent 0.64mm square or round pins on 2.54mm centers. It accommodates 2 positions in a 1x2 configuration and uses female sockets with gold plated phosphor bronze contacts for reliable low-resistance connections.
Electrically, the socket is rated for 3A continuous current at 250V DC or AC peak, with a voltage proof of 750V rms at 50Hz. Contact resistance is 20mΩ max initially and 25mΩ max after conditioning. Insulation resistance is 100,000MΩ min initially and 1,000MΩ min after hot conditioning. The housing is made of glass-filled polyester with UL94 V-0 flammability rating, and the operating temperature range is -40°C to +85°C.
Mechanically, the component has a through-hole solder termination style and a height of 6.30mm. The gray open top design allows easy access for probing or visual inspection. It is suitable for side-by-side mounting on standard 2.54mm grids. Durability is rated for 300 mating operations with gold on the contact area.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.40 | $0.40 |
| 25+ | $0.37 | $0.37 |
| 50+ | $0.35 | $0.35 |
| 100+ | $0.34 | $0.34 |
| 250+ | $0.32 | $0.32 |
| 500+ | $0.30 | $0.30 |
| 1,000+ | $0.29 | $0.29 |
| 3,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M7565-05 has 2 positions arranged in a 1x2 grid.
The pitch is 2.54mm (0.100").
The current rating is 3A at ambient temperature.
The working voltage is 250V DC nominal or AC peak at sea level.
The M7565-05 uses through-hole mounting with solder termination.
The operating temperature range is -40°C to +85°C.
Initial contact resistance is 20mΩ max; after conditioning it is 25mΩ max (gold finish).
