| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Function | |
| Input Capacitance | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |
The M74HC74AM from Fairchild Semiconductor is a dual D-type flip-flop, part of the 74HC logic family. This component is designed for digital logic applications requiring reliable state storage. It features two independent D-type flip-flops, each with set and reset capabilities, and positive edge triggering for clock inputs.
The device operates over a wide supply voltage range of 2V to 6V, making it suitable for various system designs. Its quiescent current is a low 4 µA, contributing to power efficiency. The output current capability is 5.2mA for both high and low states. The maximum clock frequency is 94 MHz, and input capacitance is 5 pF.

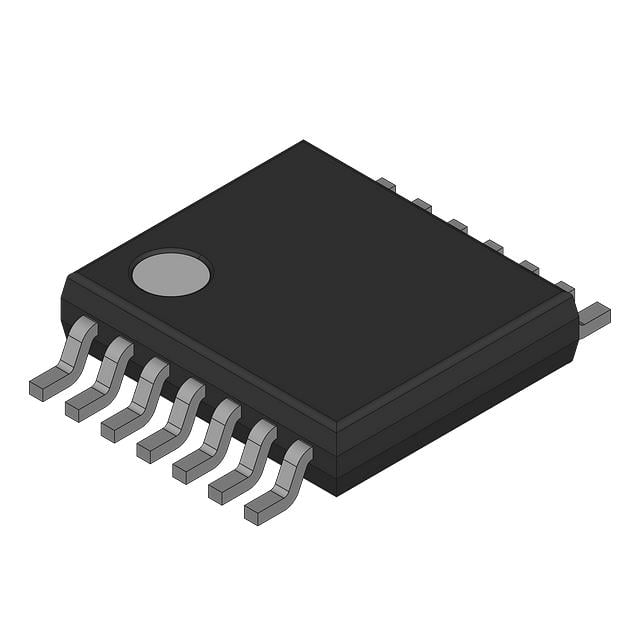

Packaged in a 14-TSSOP surface mount configuration, the M74HC74AM is designed for ease of integration into printed circuit boards. The operating temperature range is -40°C to 85°C, ensuring performance in diverse environmental conditions. This flip-flop is a fundamental building block for sequential logic circuits, state machines, and data synchronization tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.69 | $10.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M74HC74AM operates within a supply voltage range of 2V to 6V.
The operating temperature range for the M74HC74AM is -40°C to 85°C.
The M74HC74AM is supplied in a 14-TSSOP package.
The maximum clock frequency for the M74HC74AM is 94 MHz.
The quiescent current (Iq) for the M74HC74AM is 4 µA.
