| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
516,571 pcs
|
516571 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Switch Circuit | |
| Tape & Reel |
The STMicroelectronics M74HC4053TTR is an analog switch multiplexer designed for interface applications. It features three independent SPDT switches, each configured as a 2:1 multiplexer/demultiplexer. The device offers a low on-state resistance of 100 Ohms maximum and channel-to-channel matching of 5 Ohms.
Operating over a supply voltage range of 2V to 6V (single or dual supply), the M74HC4053TTR boasts a -3dB bandwidth of 200MHz and fast switching times with typical Ton of 14ns and Toff of 26ns. Leakage current is kept low at a maximum of 100nA, and crosstalk is -50dB at 1kHz.

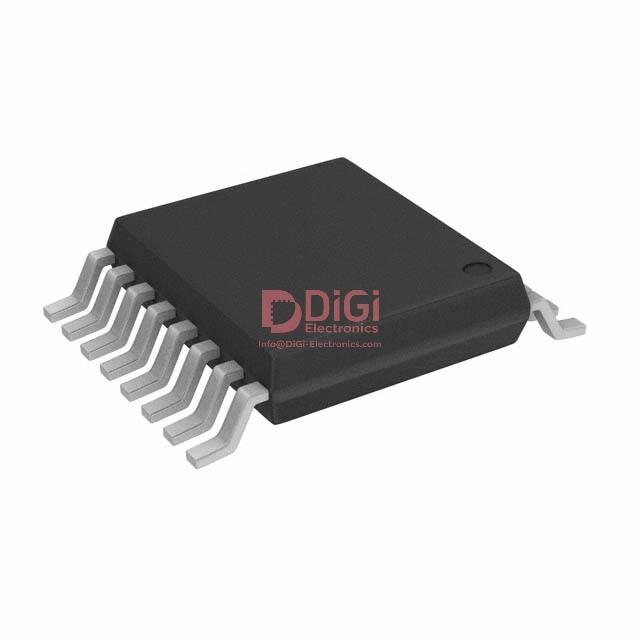

This component is housed in a 16-TSSOP package and is designed for surface mounting. It operates reliably within an extended temperature range of -55°C to 125°C, making it suitable for various demanding applications. The M74HC4053TTR is a versatile solution for signal routing and switching needs in electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum on-state resistance is 100 Ohm.
The operating temperature range is -55°C to 125°C.
The M74HC4053TTR is available in a 16-TSSOP surface mount package.
The single supply voltage range is 2V to 6V, and the dual supply range is ±2V to ±6V.
The minimum -3 dB bandwidth is 200 MHz.
