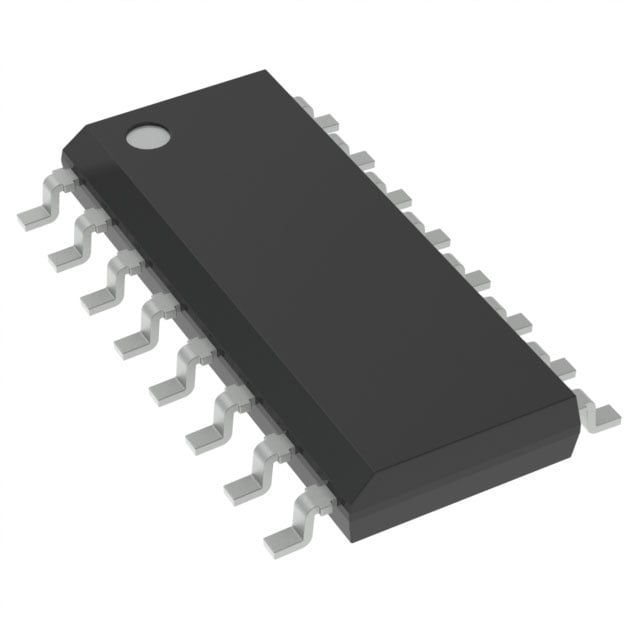

M74HC174RM13TR The M74HC174RM13TR is a D-Type Flip Flop from STMicroelectronics. It features a 6-bit configuration and operates with a supply voltage range of 2V to 6V.
Mfr Part #:

M74HC174RM13TR

Available from 2 distributors
Mfr Name: ST
ST
The M74HC174RM13TR is a D-Type Flip Flop from STMicroelectronics. It features a 6-bit configuration and operates with a supply voltage range of 2V to 6V.
✓ Total Stock: 280,654 pcs
$ Price Range: $0.86

M74HC174RM13TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
278,154 pcs
On Request
278154 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 06+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M74HC174RM13TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Function
Input Capacitance
Lead Spacing
Lead Style
Mounting Type
Number of Elements
Operating Temperature
Output Type
Quiescent Current
SVHC Present
Supply Voltage
Tape & Reel
Type
View Similar Products (0)

M74HC174RM13TR Description

Short technical summary and product information.

The M74HC174RM13TR is a D-Type flip-flop integrated circuit manufactured by STMicroelectronics. This component belongs to the 74HC series and is designed for digital logic applications.



Key electrical specifications include a maximum clock frequency of 66 MHz and a supply voltage range from 2V to 6V. It offers a propagation delay of 23ns at 6V and 50pF, with an output current capability of 5.2mA. The quiescent current is a low 4 µA, and input capacitance is 5 pF.



This flip-flop features a Master Reset function and positive edge triggering. The output type is non-inverted. It is packaged in a 16-SO surface mount configuration, supplied on tape and reel.



The operating temperature range for the M74HC174RM13TR is -55°C to 125°C. It is RoHS3 compliant and has an MSL rating of 1.

M74HC174RM13TR Quick Information

Product Type: Flip Flop
Series: 74HC
Canonical Name: M74HC174RM13TR D-Type Flip Flop
Subcategory: Logic

M74HC174RM13TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

M74HC174RM13TR Estimated Pricing

Qty Low High
1+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

M74HC174RM13TR Features

  • 6-bit D-Type flip-flop.
  • 66 MHz maximum clock frequency.
  • 2V to 6V supply voltage range.
  • Surface mount 16-SO package.
  • Wide -55°C to 125°C operating temperature.

M74HC174RM13TR Applications

  • Digital logic circuit design.
  • Data storage applications.
  • Sequential circuit implementation.
  • Control signal generation.

M74HC174RM13TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the M74HC174RM13TR?

The device operates from 2V to 6V.

What is the package type of the M74HC174RM13TR?

It comes in a 16-SO surface-mount package.

What is the operating temperature range of the M74HC174RM13TR?

The operating temperature range is -55°C to 125°C.

What is the maximum clock frequency of the M74HC174RM13TR?

The maximum clock frequency is 66 MHz.

What is the maximum propagation delay of the M74HC174RM13TR?

The maximum propagation delay is 23 ns at 6V and 50pF load.

What is the output current capability of the M74HC174RM13TR?

Output current is 5.2 mA for both high and low states.

What is the trigger type of the M74HC174RM13TR?

The trigger type is positive edge.
