M74HC164RM13TR The STMicroelectronics M74HC164RM13TR is an 8-bit shift register designed for serial to parallel data conversion. It operates within a voltage range of 2V to 6V.
Mfr Part #:

M74HC164RM13TR

Available from 2 distributors
Mfr Name: ST
ST
The STMicroelectronics M74HC164RM13TR is an 8-bit shift register designed for serial to parallel data conversion. It operates within a voltage range of 2V to 6V.
✓ Total Stock: 517,405 pcs
$ Price Range: $0.64

M74HC164RM13TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
516,571 pcs
On Request
516571 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
834 pcs
On Request
834 pcs On Request 1 On Request On Request 03+;11 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M74HC164RM13TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Lead Style
Logic Type
Mounting Type
Number of Elements
Operating Temperature
Output Type
SVHC Present
Supply Voltage
Tape & Reel
View Similar Products (0)

M74HC164RM13TR Description

Short technical summary and product information.

The M74HC164RM13TR from STMicroelectronics is a high-speed CMOS device belonging to the 74HC series of logic ICs. This shift register functions as an 8-bit serial-in, parallel-out (SIPO) converter, enabling efficient data manipulation.



Key electrical characteristics include a wide operating supply voltage range from 2V to 6V, making it suitable for various power-sensitive applications. The device is designed to operate reliably across a broad temperature spectrum, from -55°C to 125°C.

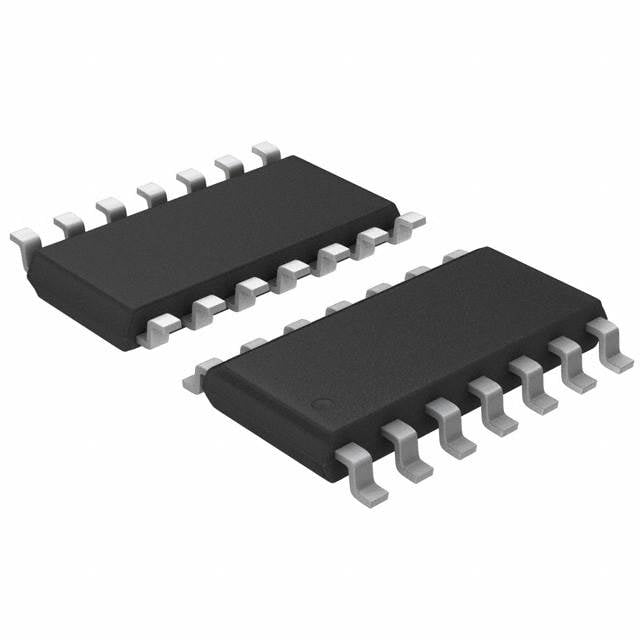

Packaged in a 14-SOIC surface-mount format, the M74HC164RM13TR is compatible with standard automated assembly processes. Its push-pull output type ensures robust signal transmission. The component is specified with RoHS3 compliance and an MSL 1 rating, indicating its suitability for a wide range of industrial and commercial applications.

M74HC164RM13TR Quick Information

Product Type: Shift Register
Series: 74HC
Canonical Name: ST M74HC164RM13TR Shift Register
Subcategory: Shift Register

M74HC164RM13TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

M74HC164RM13TR Estimated Pricing

Qty Low High
1+ $0.64 $0.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

M74HC164RM13TR Features

  • 8-bit serial-in, parallel-out shift register.
  • Operates from 2V to 6V supply voltage.
  • Wide temperature range: -55°C to 125°C.
  • Surface mount 14-SOIC package.
  • RoHS3 compliant.

M74HC164RM13TR Applications

  • Serial data to parallel output conversion.
  • Digital logic circuit expansion.
  • Interface for microcontrollers.
  • Control signal distribution.

M74HC164RM13TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the M74HC164RM13TR?

2V to 6V.

What package is the M74HC164RM13TR available in?

14-SOIC (0.154, 3.90mm Width) surface mount package.

What is the operating temperature range of the M74HC164RM13TR?

-55°C to 125°C.

What is the logic type of the M74HC164RM13TR?

Shift Register.

What is the output type of this shift register?

Push-Pull.

What is the function of the M74HC164RM13TR?

Serial to Parallel.

How many bits per element does the M74HC164RM13TR have?

8 bits.
