| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
723,200 pcs
|
723200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current - Quiescent (Max) | |
| Lead Spacing | |
| Lead Style | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage Supply |
The STMicroelectronics M74HC08RM13TR is a high-speed CMOS logic integrated circuit featuring four independent 2-input AND gates. This device is designed for a wide operating voltage range from 2V to 6V, making it suitable for various applications.
Key electrical characteristics include a maximum quiescent current of 1 µA and output currents of 5.2mA for both high and low states. The input logic levels are defined between 0.5V to 1.8V for low and 1.5V to 4.2V for high. It offers a maximum propagation delay of 13ns at 6V with a 50pF load capacitance.

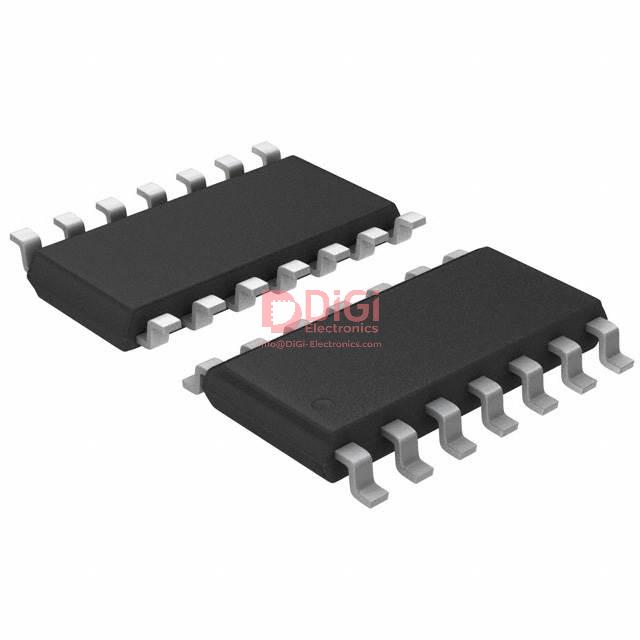

The M74HC08RM13TR is housed in a 14-SOIC surface mount package, facilitating easy integration into printed circuit boards. Its operating temperature range spans from -55°C to 125°C, ensuring reliability in demanding environments. This logic IC is part of the 74HC series, known for its balance of speed and low power consumption.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2V to 6V.
The operating temperature range is -55°C to 125°C.
It is available in a 14-SOIC (0.154", 3.90mm Width) surface mount package.
It contains 4 independent AND gates.
Each gate has 2 inputs.
Maximum propagation delay is 13ns at 6V supply with 50pF load.
It is an AND gate logic type.
