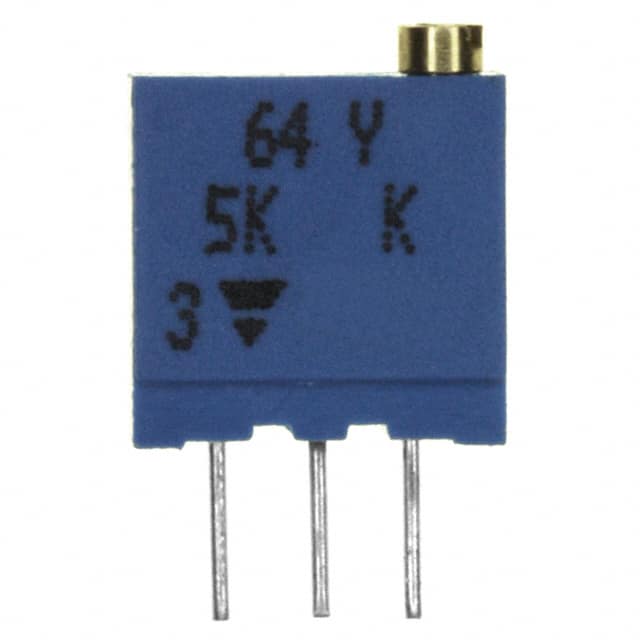

M64Y502KB40 The Vishay Dale M64Y502KB40 is a cermet trimmer potentiometer featuring 5 kΩ resistance and a 0.5W power rating. It is designed for through-hole mounting.
Mfr Part #:

M64Y502KB40

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale M64Y502KB40 is a cermet trimmer potentiometer featuring 5 kΩ resistance and a 0.5W power rating. It is designed for through-hole mounting.
✓ Total Stock: 9 pcs
$ Price Range: $0.05

M64Y502KB40 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M64Y502KB40 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Insulation Resistance
Lead Spacing
Lead Style
Limiting Element Voltage
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Storage Temperature
Tape & Reel
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
View Similar Products (0)

M64Y502KB40 Description

Short technical summary and product information.

The Vishay Dale M64Y502KB40 is an industrial-grade trimmer potentiometer with a cermet resistive element. It offers a resistance value of 5 kΩ with a tolerance of ±10% and a power rating of 0.5W at 70°C. The potentiometer features 21 turns for precise adjustment and a top adjustment type.



Designed for through-hole mounting, this trimmer has PC pin terminations and a rectangular form factor measuring 0.382" x 0.197" (9.70mm x 5.00mm). It operates within a temperature range of -55°C to +125°C and is fully sealed to IP67 standards. The electrical travel is 21 turns, with a mechanical travel of 23 turns. Key electrical specifications include a limiting element voltage of 250V, dielectric strength of 1000V RMS, and insulation resistance of ≥ 10^6 MΩ at 500V DC. The contact resistance variation is less than 2%.



This component is suitable for applications requiring precise resistance adjustments in various electronic circuits. Its robust construction and sealing make it reliable for industrial environments.

M64Y502KB40 Quick Information

Product Type: Trimmer Potentiometer
Canonical Name: Vishay Dale M64Y502KB40 Cermet Trimmer Potentiometer
Subcategory: Trimmer Potentiometers

M64Y502KB40 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M64Y502KB40 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

M64Y502KB40 Features

  • 5 kΩ resistance with ±10% tolerance.
  • 0.5W power rating at 70°C.
  • Cermet resistive element for stability.
  • 21-turn multi-turn adjustment.
  • Through-hole mounting with PC pins.

M64Y502KB40 Applications

  • Ideal for precise circuit calibration.
  • Suitable for industrial control systems.
  • Used in test and measurement equipment.
  • Applicable in power supply adjustments.

M64Y502KB40 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the M64Y502KB40?

The resistance value is 5 kΩ.

What is the tolerance of the M64Y502KB40 trimmer potentiometer?

The tolerance is ±10%.

What is the power rating of the M64Y502KB40?

The power rating is 0.5W at 70°C.

What is the temperature coefficient for this trimmer?

The temperature coefficient is ±100ppm/°C.

How many turns does the M64Y502KB40 have for adjustment?

It has 21 turns for electrical travel.

What type of resistive element does the M64Y502KB40 use?

It uses a cermet resistive element.

What is the operating temperature range for this component?

The operating temperature range is -55°C to +125°C.
