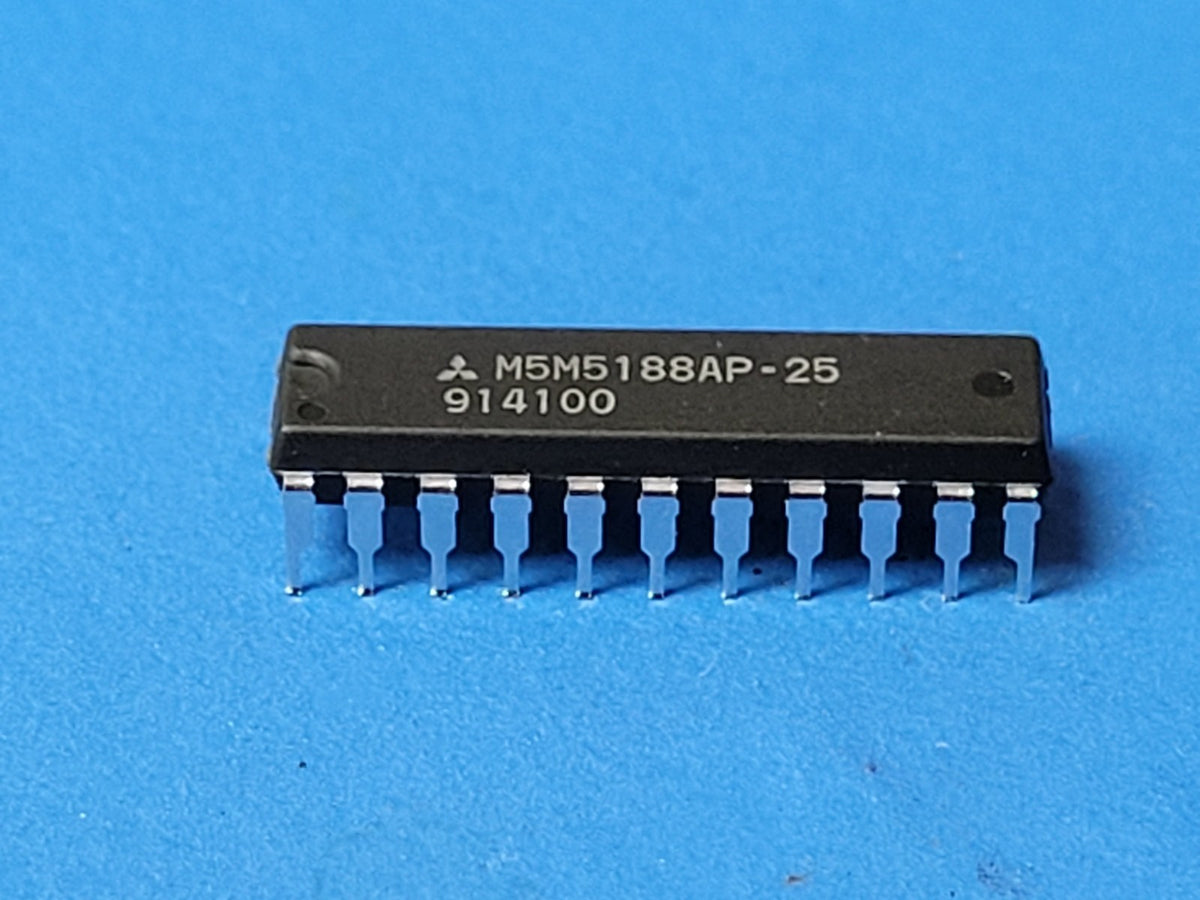

M5M5188AP-25 The Mitsubishi Electronic M5M5188AP-25 is a Standard SRAM with a 16K x 4 organization and a 25ns maximum access time. It operates with CMOS technology and comes in a PDIP-22 package.
Mfr Part #:

M5M5188AP-25

Available from 1 distributors
Mfr Name: Mitsubishi Electronic
Mitsubishi Electronic
The Mitsubishi Electronic M5M5188AP-25 is a Standard SRAM with a 16K x 4 organization and a 25ns maximum access time. It operates with CMOS technology and comes in a PDIP-22 package.
✓ Total Stock: 198 pcs
$ Price Range: $1.93

M5M5188AP-25 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
198 pcs
On Request
198 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M5M5188AP-25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Mounting Type
Operating Mode
Operating Temperature
Supply Current
Technology
View Similar Products (0)

M5M5188AP-25 Description

Short technical summary and product information.

The M5M5188AP-25 from Mitsubishi Electronic is a Standard SRAM memory integrated circuit. It offers a memory density of 65536 bits, organized as 16384 words by 4 bits. This asynchronous SRAM features a maximum access time of 25ns and operates using CMOS technology.



The device is housed in a PDIP-22 (Plastic Dual In-line Package) with a 0.300-inch body and through-hole mounting. The operating temperature range is from 0°C to 70°C. Supply voltage requirements are between 4.5V and 5.5V, with a nominal value of 5.0V. The output characteristics are 3-state, and it has a standby current of 0.002 Amp and a maximum supply current of 0.1 Amp.



This component is suitable for applications requiring reliable asynchronous memory access. Its through-hole package facilitates easy integration into various electronic designs. The commercial temperature grade makes it suitable for general-purpose applications.

M5M5188AP-25 Quick Information

Product Type: Standard SRAM
Canonical Name: Mitsubishi Electronic M5M5188AP-25 Standard SRAM
Subcategory: SRAMs

M5M5188AP-25 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M5M5188AP-25 Estimated Pricing

Qty Low High
1+ $1.93 $1.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

M5M5188AP-25 Features

  • 16K x 4 organization Standard SRAM
  • 25ns maximum access time
  • CMOS technology for low power
  • PDIP-22 through-hole package
  • Wide supply voltage range (4.5V-5.5V)

M5M5188AP-25 Applications

  • Ideal for embedded systems memory
  • Suitable for data buffering tasks
  • Used in general electronics designs
  • Component for prototyping circuits

M5M5188AP-25 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum access time of the M5M5188AP-25?

The maximum access time is 25 nanoseconds.

What is the supply voltage range for the M5M5188AP-25?

The supply voltage ranges from 4.5 V to 5.5 V, with a typical voltage of 5 V.

What is the memory organization of the M5M5188AP-25?

It is organized as 16K x 4, totaling 65536 bits.

What package type is used for the M5M5188AP-25?

It is packaged in a DIP-22 through-hole package.

What is the operating temperature range for this component?

It operates between 0°C and 70°C.

Is the M5M5188AP-25 compliant with RoHS?

RoHS compliance status is unverified.
