| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
550 pcs
|
550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

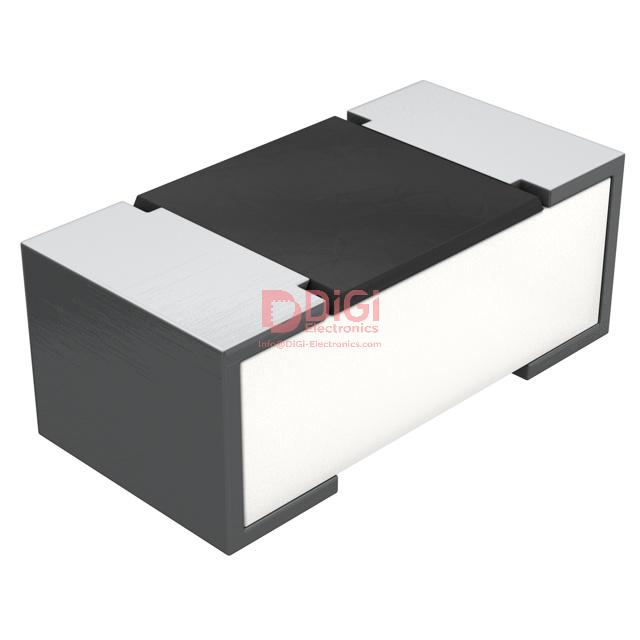

This Vishay Dale M55342H04B80B6RTS is a high-precision surface mount chip resistor designed for demanding applications. It features a thin film composition, providing a resistance value of 80.6 kΩ with a tight tolerance of ±0.1%.
The resistor is rated for 0.15W of power and operates within a temperature range of -55°C to 150°C. Its compact 1505 package size (3.94mm x 1.27mm) makes it suitable for space-constrained designs.
Key specifications include a temperature coefficient of ±50ppm/°C and a failure rate of R (0.01%). The component is designed for surface mounting and has 2 terminations.
This part is suitable for applications requiring stable and accurate resistance values, such as in military or industrial electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 80.6 kΩ.
The tolerance is ±0.1%.
The power rating is 0.15W.
The operating temperature range is -55°C to 150°C.
The package size is 1505.
The temperature coefficient is ±50ppm/°C.
