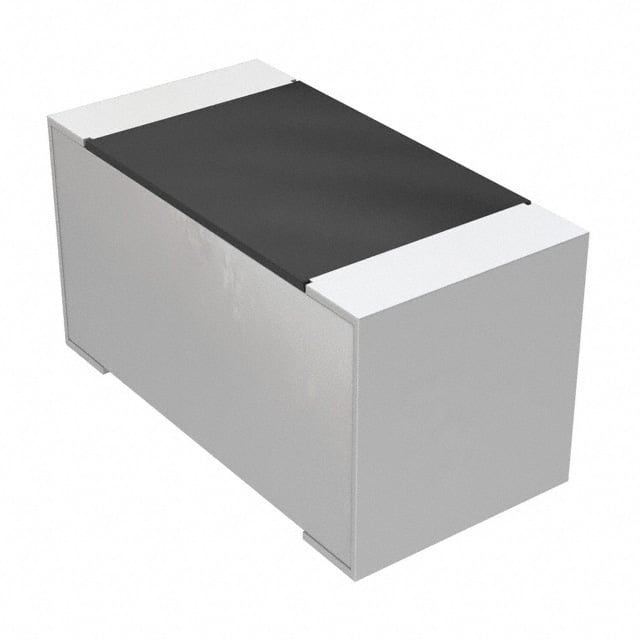

M55342E12B150BRT5 The Vishay Dale M55342E12B150BRT5 is a thin film chip resistor with a resistance of 150 kOhms and a tolerance of ±0.1%. It features a 0.1W power rating and is housed in a 0603 package.
Mfr Part #:

M55342E12B150BRT5

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale M55342E12B150BRT5 is a thin film chip resistor with a resistance of 150 kOhms and a tolerance of ±0.1%. It features a 0.1W power rating and is housed in a 0603 package.
✓ Total Stock: 500 pcs
$ Price Range: $0.05

M55342E12B150BRT5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M55342E12B150BRT5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Failure Rate
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

M55342E12B150BRT5 Description

Short technical summary and product information.

This Vishay Dale M55342E12B150BRT5 is a surface-mount chip resistor designed for demanding applications. It offers a precise resistance value of 150 kOhms with a tight tolerance of ±0.1% and a power rating of 0.1W (1/10W).



The resistor is constructed with thin film technology, providing stability and reliability. It operates within a temperature range of -55°C to 150°C and has a temperature coefficient of ±25ppm/°C. The non-inductive design makes it suitable for high-frequency applications.



Packaged in a compact 0603 (1608 Metric) case, this component is ideal for automated assembly processes. Its dimensions are 1.63mm L x 0.81mm W with a height of 0.84mm. The component features 2 terminations and a failure rate of R (0.01%).



This part is designated as RoHS non-compliant. It is supplied in tape and reel packaging with a standard package quantity of 500 units.

M55342E12B150BRT5 Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RM0603
Canonical Name: Vishay Dale Thin Film Chip Resistor, 150 kOhms, ±0.1%, 0.1W, 0603
Subcategory: Chip Resistor - Surface Mount

M55342E12B150BRT5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M55342E12B150BRT5 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

M55342E12B150BRT5 Features

  • 150 kOhms resistance with ±0.1% tolerance.
  • 0.1W power rating in a 0603 package.
  • Military-grade, non-inductive thin film construction.
  • Wide operating temperature range of -55°C to 150°C.
  • RoHS non-compliant status.

M55342E12B150BRT5 Applications

  • Suitable for military applications.
  • Ideal for high-frequency circuits.
  • Surface mount assembly compatibility.
  • Precision measurement circuits.

M55342E12B150BRT5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the M55342E12B150BRT5 resistor?

The resistance value is 150 kOhms.

What is the tolerance of the M55342E12B150BRT5 resistor?

The tolerance is ±0.1%.

What is the power rating of the M55342E12B150BRT5 resistor?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 150°C.

What package size is the M55342E12B150BRT5 resistor in?

The resistor is in a 0603 (1608 Metric) package.

Is this resistor RoHS compliant?

No, this resistor is RoHS non-compliant.
