| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Features | |
| Frequency | |
| Impedance | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Style | |
| Tape & Reel |

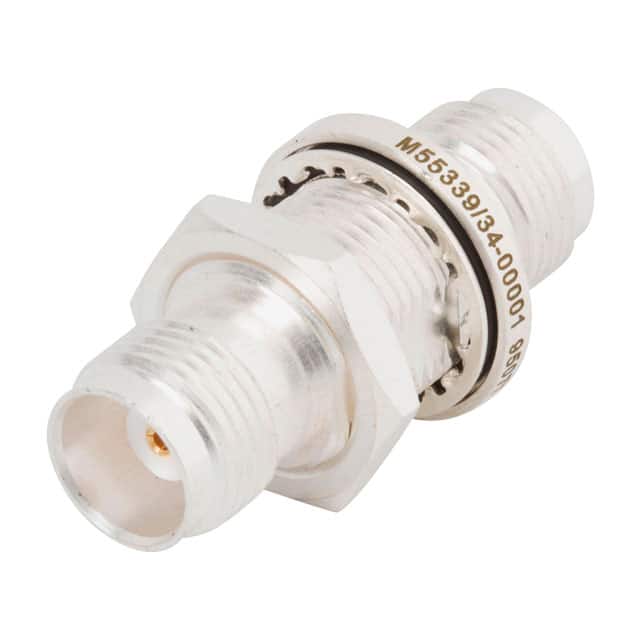

The M55339/34-00001 is a TNC to TNC same-series coaxial adapter from SV Microwave, Inc. It features a jack-to-jack configuration with female center contacts on both ends. The adapter is straight in style and uses threaded fastening on both connectors for secure mating.
Electrical characteristics include a characteristic impedance of 50 Ohms and a maximum operating frequency of 11 GHz. The center contacts are gold plated for reliable signal integrity and corrosion resistance.
This adapter is designed for panel mount installation with a bulkhead mounting feature, allowing it to be securely fastened to a chassis or enclosure. The body is hermetically sealed, making it suitable for environments where moisture or contaminants must be excluded.
Typical applications include RF test equipment, telecommunications infrastructure, and military communication systems requiring a durable, high-performance coaxial interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $131.11 | $131.11 |
| 10+ | $120.17 | $120.17 |
| 25+ | $116.77 | $116.77 |
| 50+ | $106.97 | $106.97 |
| 100+ | $105.19 | $105.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is a jack to jack adapter within the TNC series, same-series conversion.
The impedance is 50 Ohms.
The maximum operating frequency is 11 GHz.
Panel mount with a bulkhead feature.
Both ends have female center contacts (female to female).
Threaded fastening on both connectors.
Yes, it is hermetically sealed.
