Mfr Part #:

M55-7013242R

Name: M55-7013242R
Brand: Harwin Inc.
SKU: M55-7013242R

Mfr Name: Harwin Inc.

Description:

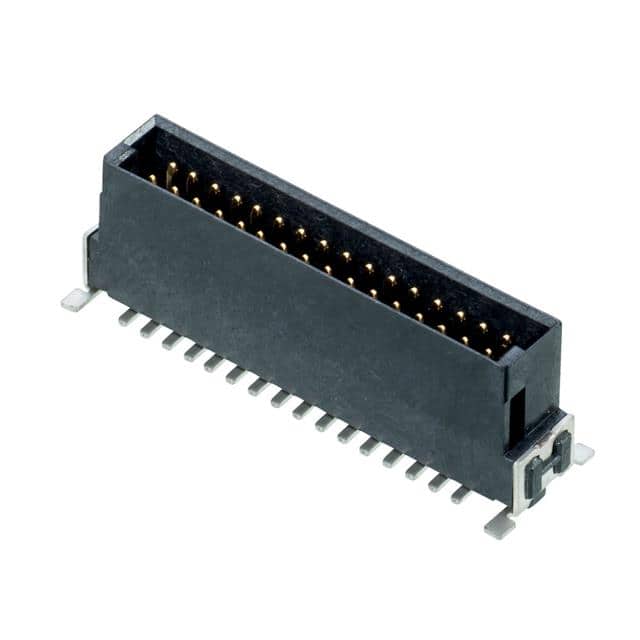

CONN HDR 1.27MM SMD 32POS

Stock on Request

M55-7013242R Description

Short technical summary and product information.

CONN HDR 1.27MM SMD 32POS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Harwin Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	1.00碌in (0.025碌m)
Contact Length	0.157" (4.00mm)
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	1.2A
Fastening Type	Latch Lock
Features	Board Guide, Pick and Place, Solder Retention
Insulation Color	Black
Insulation Height	0.325" (8.25mm)
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	32
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	0.050" (1.27mm)
Row Spacing	0.050" (1.27mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board
Termination	Solder
Voltage Rating	100VAC
