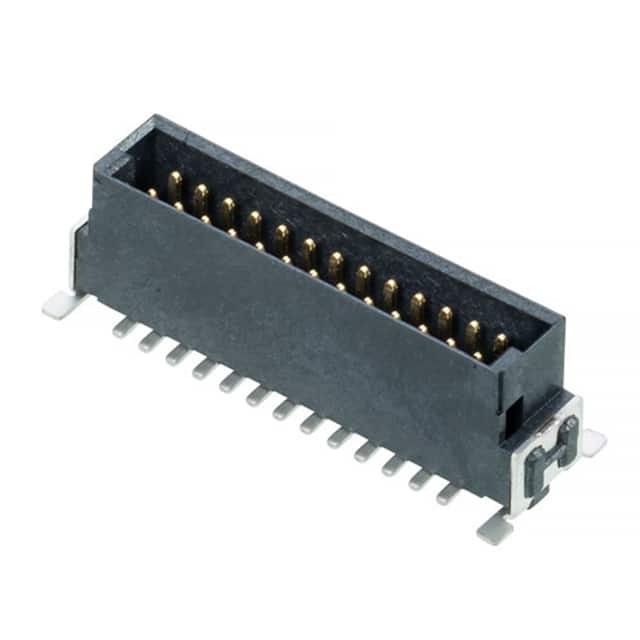

M55-7002642R M55-7002642R is a 26-position (13+13) male pin header connector from Harwin's Kontrol series. It features a 1.27mm pitch, shrouded 4-wall design with latch lock, surface mount termination, and is rated for 1.2A.
Mfr Part #:

M55-7002642R

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
M55-7002642R is a 26-position (13+13) male pin header connector from Harwin's Kontrol series. It features a 1.27mm pitch, shrouded 4-wall design with latch lock, surface mount termination, and is rated for 1.2A.
✓ Total Stock: 221,551 pcs
$ Price Range: $0.93 - $1.72

M55-7002642R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
221,551 pcs
On Request
221551 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M55-7002642R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

M55-7002642R Description

Short technical summary and product information.

The M55-7002642R is a 26-contact (13+13) male plug connector from Harwin's Kontrol series. This double row straight SMT connector utilizes a 1.27mm pitch with 1.27mm row spacing. The housing is a black LCP (Liquid Crystal Polymer) rated UL94 V-0, featuring a shrouded 4-wall design with latch lock for secure mating and polarization. Contacts are made of phosphor bronze with gold over nickel plating on the mating area and tin over nickel on the tails. The connector includes board guide, pick and place pad, and solder retention features for reliable SMT assembly. It is designed for board-to-board applications and is rated for 1.2A per contact with an operating temperature range of -55°C to +125°C. Packaging is provided in tape and reel.

M55-7002642R Quick Information

Product Type: Header, Male Pins
Series: M55-70XXX42R
Canonical Name: M55-7002642R - 13+13 Pos. Male Plug DIL Straight SMT Connector, 6.75mm high
Subcategory: Male Pins

M55-7002642R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M55-7002642R Estimated Pricing

Qty Low High
1+ $1.72 $1.72
10+ $1.46 $1.46
100+ $1.24 $1.24
500+ $1.10 $1.10
1,000+ $1.02 $1.02
2,500+ $0.97 $0.97
5,000+ $0.93 $0.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

M55-7002642R Features

  • 26 contact male pin header.
  • 1.27mm pitch double row design.
  • Shrouded 4-wall with latch lock.
  • Gold plated mating contacts.
  • Surface mount with solder retention.

M55-7002642R Applications

  • Board-to-board interconnects in electronic assemblies.
  • High-density PCB stacking applications.
  • Signal and low-power distribution.

M55-7002642R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

26 positions (13+13).

What is the pitch of this connector?

1.27 mm.

What is the current rating?

1.2 A per contact.

What is the mounting type?

Surface mount (SMT).

What is the operating temperature range?

-55°C to +125°C.

What is the connector height?

6.75 mm.

Is the connector shrouded?

Yes, it features a 4-wall shrouded housing with latch lock.
