| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,819 pcs
|
7819 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

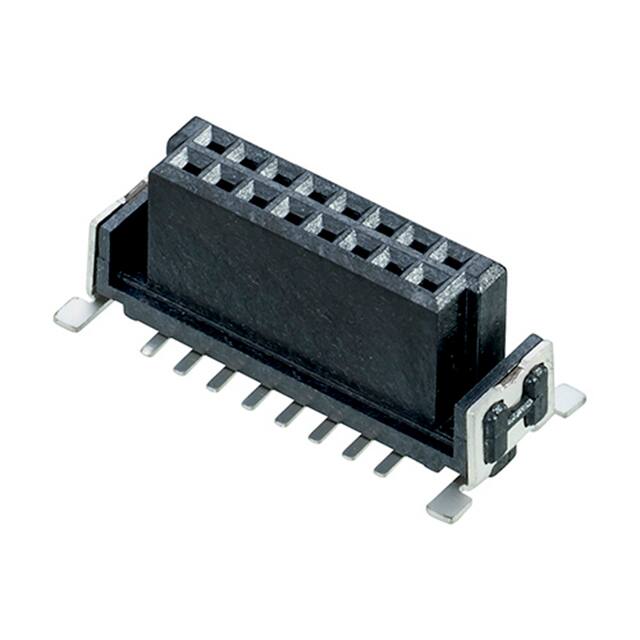

The Harwin Inc. M55-6001642R is a female receptacle connector from the Kontrol series, designed for reliable board-to-board interconnections. This component features 16 positions arranged in two rows, with a precise 1.27mm pitch.
Constructed for surface mounting, the M55-6001642R offers a 1.2A current rating and a voltage rating of 100VAC. Its insulation is black and rated UL94 V-0 for material flammability. Key features include board guides for placement assistance, pick and place compatibility, and solder retention.
The connector operates within a temperature range of -55°C to 125°C. The contact finish is tin with a thickness of 1.00µin. Its insulation height is 6.25mm, and it supports various mated stacking heights including 8mm, 9.5mm, and 11.1mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M55-6001642R connector has 16 positions.
The pitch of the M55-6001642R connector is 1.27mm.
The current rating for the M55-6001642R connector is 1.2A.
The voltage rating of the M55-6001642R connector is 100VAC.
The M55-6001642R connector is designed for surface mounting.
