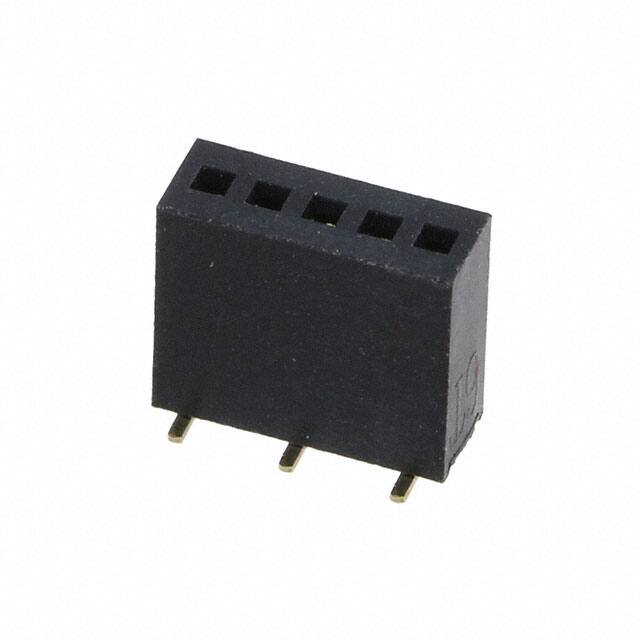

The Harwin M52-5050545 is a 5-position single row female receptacle from the Archer M52 series of board-to-board connectors. It features a 1.27mm pitch and a straight surface mount (SMT) termination style, with a connector height of 6mm. The receptacle accepts 0.46mm square mating pins and supports mated stacking heights of 8.5mm and 9.77mm.
Electrical specifications include a maximum current rating of 1A per contact and an initial contact resistance of 20mΩ. The operating temperature range is -40°C to 105°C, and the housing material is rated UL94 V-0 for flammability. The insulator is black, and contacts are finished with gold plating on the contact area and termination for reliable connectivity.
Designed for board-to-board applications, this connector offers a push-pull fastening type and is suitable for compact electronic assemblies where space is constrained. The single row layout with 5 positions simplifies routing and is commonly used in industrial, consumer, and telecommunications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $1.25 | $1.25 |
| 25+ | $0.95 | $0.95 |
| 85+ | $0.90 | $0.90 |
| 510+ | $0.83 | $0.83 |
| 1,020+ | $0.79 | $0.79 |
| 5,015+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions in a single row.
1.27mm (0.050 inches).
1A maximum per contact.
Surface mount (SMT).
-40°C to 105°C.
Gold plating on contact area and termination.
Push-pull.
