Mfr Part #:

M52-040023W2045

Name: M52-040023W2045
Brand: Harwin Inc.
SKU: M52-040023W2045

Mfr Name: Harwin Inc.

Description:

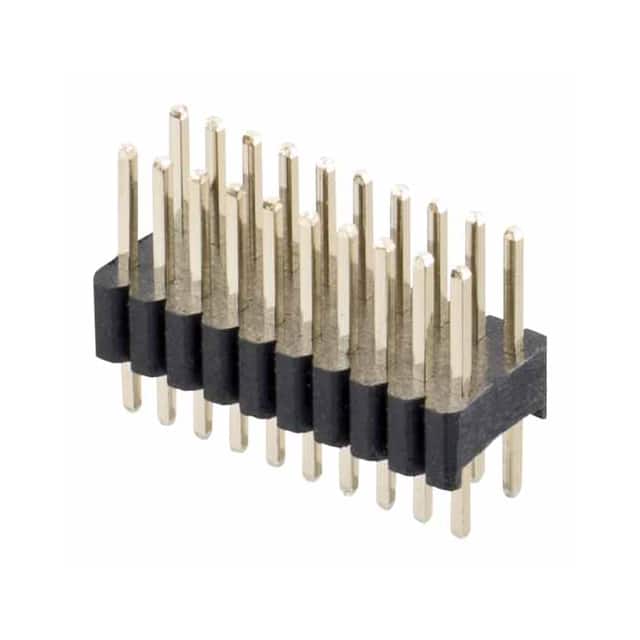

CONN HDR 1.27MM 40POS

Stock on Request

M52-040023W2045 Description

Short technical summary and product information.

CONN HDR 1.27MM 40POS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Harwin Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	0.157" (4.00mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.098" (2.50mm)
Insulation Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Overall Contact Length	0.346" (8.80mm)
Pitch	0.050" (1.27mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board
Termination	Solder
