| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
276 pcs
|
276 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

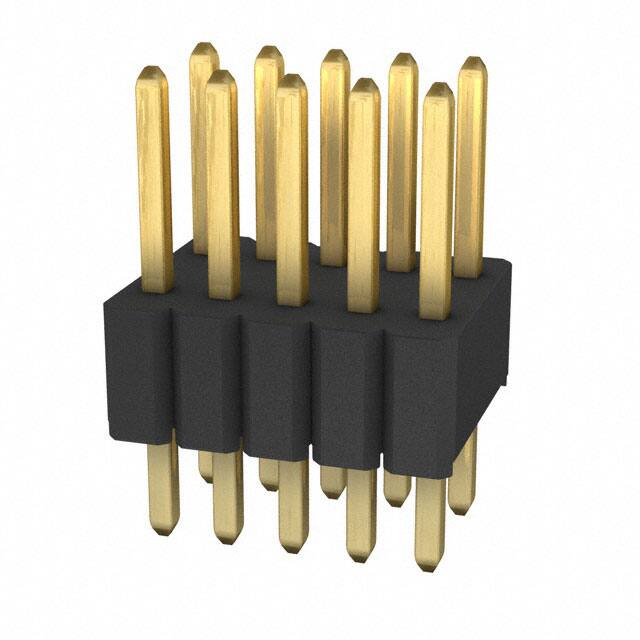

The Harwin M52-040023W0545 is a 10-position (5+5) dual-row male pin header from the Archer M52 series. It features a 1.27mm pitch between contacts and a 2.54mm pitch between rows, with straight through-hole termination. The connector is unshrouded with a push-pull fastening type and is designed for board-to-board applications.
Electrical ratings include a maximum current of 1A and initial contact resistance of 20mΩ (max per EIA-364-06C). The operating temperature range is -40°C to 105°C. Contacts are made of copper alloy with gold flash finish, while the insulator is black polyamide (PA6T) with UL94 V-0 flammability rating.
The male pins are 0.46mm square and provide a mating pin height of 4mm. PCB termination length is 2.3mm. This connector is part of the M52 series which offers board-to-board spacing flexibility by matching with appropriate socket heights.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.24 | $1.24 |
| 100+ | $1.07 | $1.07 |
| 500+ | $0.95 | $0.95 |
| 1,000+ | $0.90 | $0.90 |
| 2,500+ | $0.88 | $0.88 |
| 5,000+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions (5+5) across 2 rows.
The contact pitch is 1.27mm (0.050") and the row spacing is 2.54mm (0.100").
The maximum current rating is 1A.
It is a through-hole mount connector with solder termination.
Initial contact resistance is 20mΩ max (EIA-364-06C), and after conditioning it is 30mΩ max.
