Mfr Part #:

M52-040000S1045

Name: M52-040000S1045
Brand: Harwin Inc.
SKU: M52-040000S1045

Mfr Name: Harwin Inc.

Description:

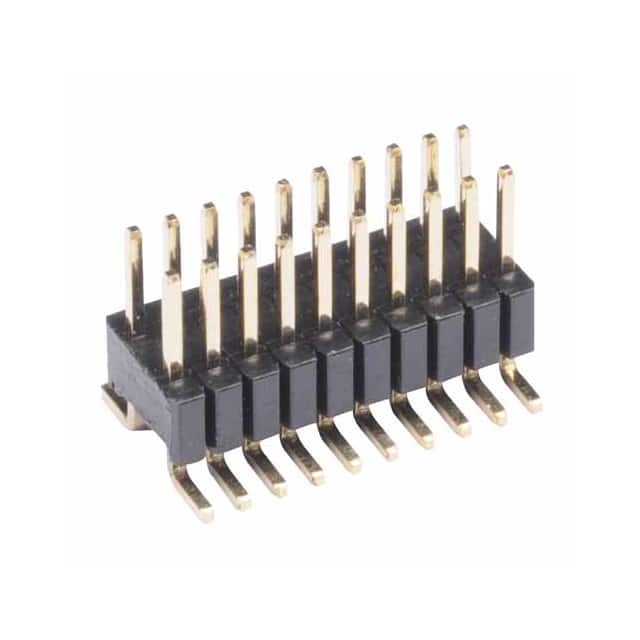

CONN HDR 1.27MM 20POS

Stock on Request

M52-040000S1045 Description

Short technical summary and product information.

CONN HDR 1.27MM 20POS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

M52-040023W1045

Harwin Inc.

CONN HEADER VERT 20POS 1.27MM

Category	Headers, Male Pins
Manufacturer Name	Harwin Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	0.157" (4.00mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.098" (2.50mm)
Insulation Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.050" (1.27mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board
Termination	Solder
