| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Length | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Shielding |

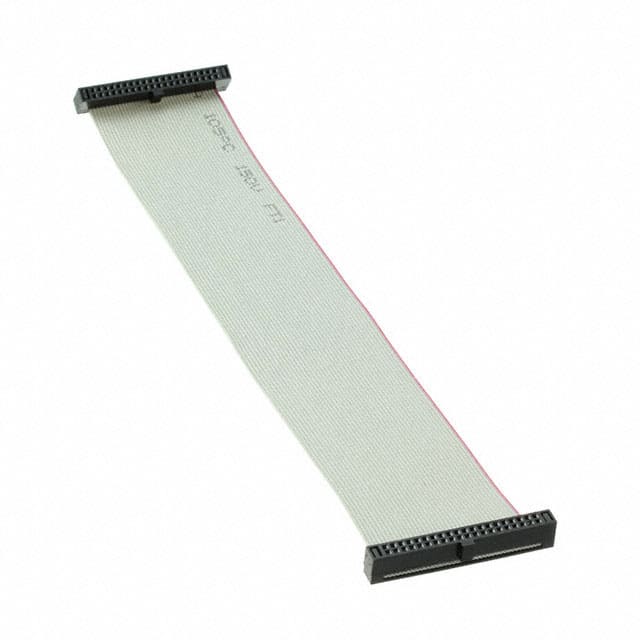

The Harwin M50-9102042 is a 40-position, 0.64mm pitch IDC socket-to-socket ribbon cable assembly from the Archer M50 series. This cable assembly uses an unshielded gray ribbon cable with a 150mm length, terminated via IDC (Insulation Displacement Connection) to two 2-row sockets. The contacts are finished with gold for reliable signal integrity.
This assembly is designed for internal board-to-board connections where a compact, low-profile interconnect is needed. The 0.64mm pitch and 40 positions make it suitable for high-density parallel data or signal transmission. The IDC termination provides a reliable, gas-tight connection without the need for stripping or soldering.
The M50-9102042 is RoHS3 compliant and has an MSL of 1 (unlimited). It is a socket-to-socket configuration, making it ideal for connecting two female headers on separate PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.66 | $13.66 |
| 10+ | $11.61 | $11.61 |
| 25+ | $10.88 | $10.88 |
| 50+ | $10.35 | $10.35 |
| 100+ | $9.86 | $9.86 |
| 250+ | $9.25 | $9.25 |
| 500+ | $8.80 | $8.80 |
| 1,000+ | $8.38 | $8.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The cable length is 150mm (5.91 inches).
This is a socket-to-socket cable assembly, meaning both ends terminate in IDC sockets.
The pitch is 0.64mm (0.025 inches).
It has 40 positions.
No, it is unshielded.
The contact finish is gold.
The part is listed as RoHS3 Compliant, but this data is unverified.
