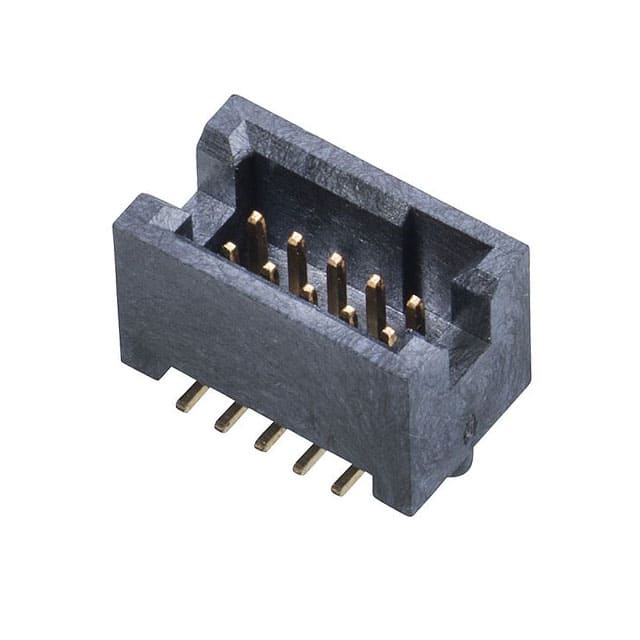

The Harwin M50-4910545 is a 10 position (5+5) dual row male pin header from the Archer M50 series. It features a 1.27mm (0.050") pitch with 1.27mm row spacing, making it suitable for compact board-to-board interconnects. The connector is shrouded with a 4-wall design and includes board guide features and location pegs to assist with accurate placement during assembly.
The header is rated for a maximum current of 1A per contact and operates over a temperature range of -40°C to +105°C. Contacts are made of phosphor bronze (with a datasheet note of copper alloy) with gold flash finish. The housing is molded from black liquid crystal polymer (LCP) rated UL94 V-0. The connector height is 6.1mm including pegs, and the insulation height is 5.69mm. Termination is surface mount solder.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.24 | $2.24 |
| 25+ | $1.70 | $1.70 |
| 100+ | $1.61 | $1.61 |
| 504+ | $1.46 | $1.46 |
| 1,008+ | $1.39 | $1.39 |
| 5,040+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050") with a row spacing of 1.27mm.
It has 10 positions arranged in 2 rows (5+5).
The maximum current rating is 1A per contact.
It is a surface mount (SMD) connector.
The operating temperature range is -40°C to +105°C.
RoHS3 compliance is claimed but unverified.
