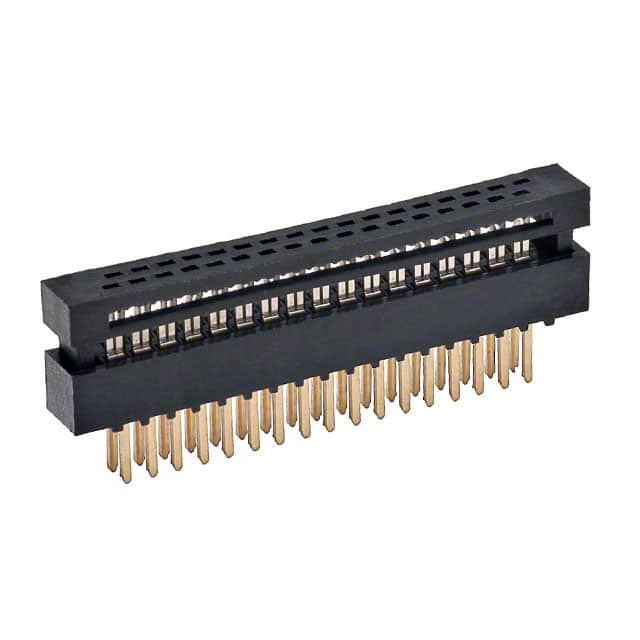

The Harwin M50-3801742 is a 34 position IDC DIP header from the M50 series, featuring a 2-row configuration with 1.27mm row spacing and 0.64mm cable pitch. It is designed for through hole mounting and uses IDC termination for 30 AWG ribbon cable.
The connector has a feed through feature and is rated for 0.5 A per contact with a maximum contact resistance of 20 mΩ initial and 30 mΩ after conditioning. It can withstand 1,000 V ACrms dielectric withstanding voltage for 1 minute.
The housing is made of high temperature thermoplastic with UL94V-0 flammability rating, and contacts are copper alloy with nickel all over and gold flash on the contact area.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.73 | $4.73 |
| 10+ | $3.81 | $3.81 |
| 22+ | $3.62 | $3.62 |
| 44+ | $3.52 | $3.52 |
| 110+ | $3.39 | $3.39 |
| 264+ | $3.19 | $3.19 |
| 506+ | $3.04 | $3.04 |
| 1,012+ | $2.90 | $2.90 |
| 2,508+ | $2.72 | $2.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M50-3801742 has 34 positions arranged in 2 rows.
The row spacing is 1.27mm (0.050 inches).
The maximum current rating is 0.5 A per contact.
The mounting type is Through Hole.
The connector is designed for 30 AWG wire.
The contact finish is nickel all over with gold flash on the contact area.
