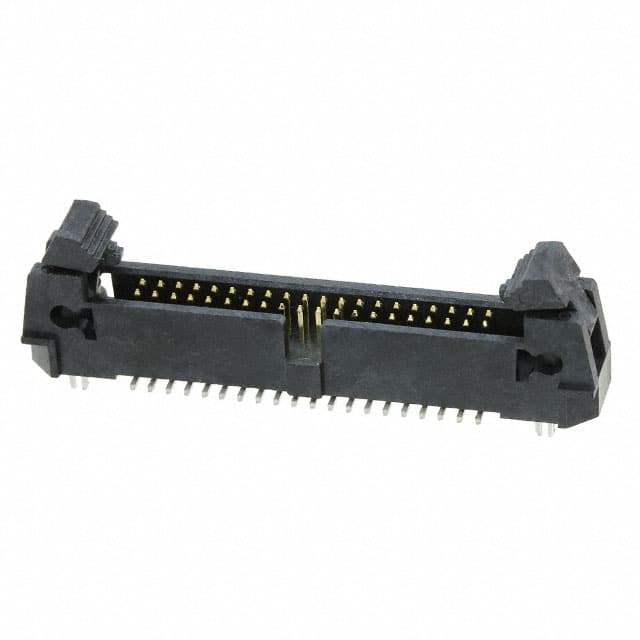

M50-3652042R 40 position (2x20) 1.27mm pitch surface mount male pin header from Harwin's Archer M50 series. Features shrouded 4-wall design with latch lock/eject hooks.
Mfr Part #:

M50-3652042R

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
40 position (2x20) 1.27mm pitch surface mount male pin header from Harwin's Archer M50 series. Features shrouded 4-wall design with latch lock/eject hooks.
✓ Total Stock: 250 pcs
$ Price Range: $2.88 - $5.01

M50-3652042R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M50-3652042R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

M50-3652042R Description

Short technical summary and product information.

The Harwin M50-3652042R is a 40-position (20+20) male pin header from the Archer M50 series, featuring a 1.27mm pitch and double row configuration. Designed for surface mount soldering, this connector has a shrouded 4-wall design with latch lock/eject hooks for secure mating and easy unmating. The insulation is black glass-filled LCP (UL94 V-0 rated) with a height of 8.25mm. Contacts are square male pins with gold flash on the contact area and tin on tails, made of copper alloy. The connector includes board locks, keying slots, and pick-and-place features for automated assembly. It mates with Harwin M50-3302042 IDC cable connector or associated cable assemblies. Electrical ratings include 1.75A per contact maximum current and 20mΩ initial contact resistance. Operating temperature range is -55°C to 125°C. Packaging is tape and reel (T+R). RoHS, REACH unaffected, and MSL 1 (Unlimited) compliance are declared.

M50-3652042R Quick Information

Product Type: Header, Male Pins
Series: M50
Canonical Name: Harwin M50-3652042R 40 Position 1.27mm Pitch Male Pin Header, Surface Mount
Subcategory: Surface Mount Header

M50-3652042R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M50-3652042R Estimated Pricing

Qty Low High
1+ $5.01 $5.01
10+ $4.26 $4.26
100+ $3.62 $3.62
250+ $3.39 $3.39
1,000+ $3.15 $3.15
2,500+ $2.88 $2.88

Estimated market price range - modelled values for guidance only, not live distributor offers.

M50-3652042R Features

  • 40 positions in 2-row 1.27mm pitch.
  • Surface mount with shrouded 4-wall design.
  • Gold flash on contacts, tin on tails.
  • Latch lock/eject hooks for secure mating.
  • Operating temperature -55°C to 125°C.

M50-3652042R Applications

  • Suitable for board-to-board connections.
  • Compatible with IDC cable assemblies.
  • Used in industrial and consumer electronics.
  • Pick-and-place compatible for automated assembly.

M50-3652042R FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M50-3652042R have?

40 positions arranged as 2 rows of 20 (20+20).

What is the pin pitch of this connector?

1.27 mm (0.050 inches).

What is the current rating per contact?

1.75 A maximum per contact.

What mounting type does it use?

Surface mount (SMT) with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold flash on the contact area and 100% tin on the tails.

What is the insulation material and flammability rating?

Black glass-filled LCP (Liquid Crystal Polymer), rated UL94 V-0.
