| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

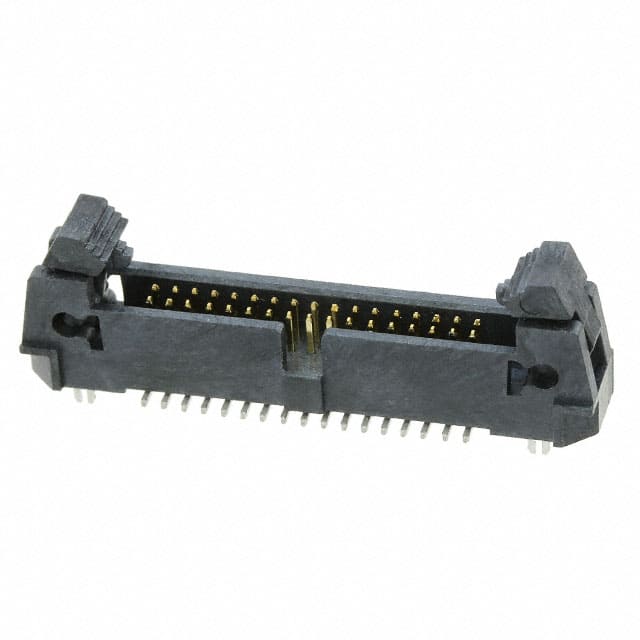

The Harwin M50-3651742R is a 34-position (17+17) male pin header from the Archer M50 series, designed for 1.27mm pitch board-to-board or cable applications. It features a shrouded 4-wall design with latch lock/eject hooks for secure mating and easy unmating. The connector is surface mount with solder termination and includes board lock, keying slot, and pick-and-place features for automated assembly.
Electrical specifications include a current rating of 1.75A per contact and a maximum contact resistance of 20mΩ initial, 30mΩ after conditioning. The operating temperature range is -55°C to 125°C. The insulator is black liquid crystal polymer (LCP) with glass fill, rated UL94 V-0. Contacts are brass with gold flash finish. The connector mates with Harwin M50-3301742 IDC cable connector or associated cable assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.47 | $4.47 |
| 10+ | $3.80 | $3.80 |
| 100+ | $3.23 | $3.23 |
| 250+ | $3.02 | $3.02 |
| 500+ | $2.79 | $2.79 |
| 1,000+ | $2.63 | $2.63 |
| 2,500+ | $2.57 | $2.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 34 positions arranged as 17+17 in two rows.
The maximum current rating is 1.75A per contact.
It is surface mount (SMD) with solder termination.
The operating temperature range is -55°C to 125°C.
The contact finish is gold flash over nickel.
