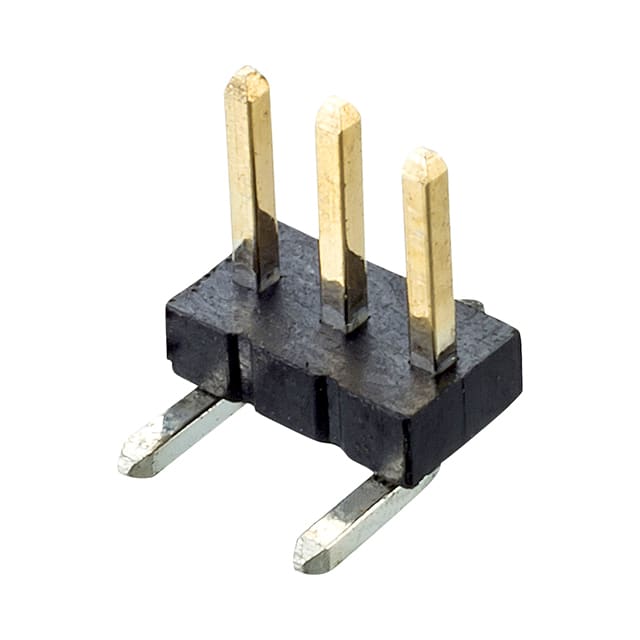

The Harwin M50-3630342 is a 3-position, single row male pin header from the Archer M50 series. It features a 1.27mm (0.050") pitch and a straight surface mount configuration with a 3.00mm mating pin height. The connector is unshrouded with a push-pull fastening type, making it suitable for board-to-board stacking applications.
Electrical ratings include a current rating of 1A per contact and a maximum initial contact resistance of 20mΩ. The operating temperature range is -40°C to 105°C. The contact area is finished with gold, while the termination area is tin. The housing is made of high temperature thermoplastic with a UL94 V-0 flammability rating.
The connector is packaged in tubes and is RoHS3 compliant. It is designed for use in a variety of electronic assemblies requiring a compact, reliable board-to-board interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.32 | $0.32 |
| 25+ | $0.28 | $0.28 |
| 100+ | $0.20 | $0.20 |
| 250+ | $0.18 | $0.18 |
| 1,064+ | $0.17 | $0.17 |
| 5,016+ | $0.17 | $0.17 |
| 10,032+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M50-3630342 has 3 positions.
The pitch is 1.27mm (0.050").
The current rating is 1A per contact.
The mounting type is surface mount (SMT).
The operating temperature range is -40°C to 105°C.
The contact finish on the mating area is gold.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and has low confidence.
