M50-3630242 Header, Male Pins, 2 Position, 1.27mm Pitch, Surface Mount, Solder Termination, Tube.
Mfr Part #:

M50-3630242

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Header, Male Pins, 2 Position, 1.27mm Pitch, Surface Mount, Solder Termination, Tube.
Stock on Request
$ Price Range: $0.12 - $0.28

M50-3630242 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Kinova ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M50-3630242 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

M50-3630242 Description

Short technical summary and product information.

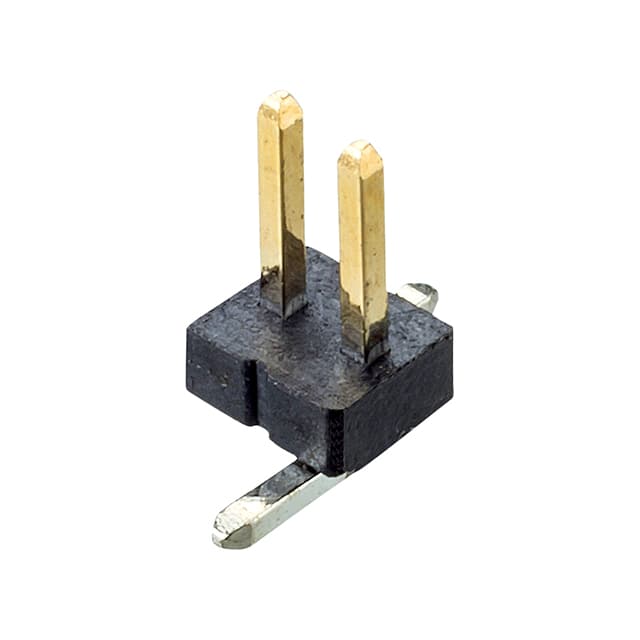

The Harwin M50-3630242 is a 2-position male pin header from the Archer M50 series, featuring a 1.27mm pitch and surface mount termination. This single-row, unshrouded connector has a push-pull fastening type and is designed for board-to-board applications. The contacts are made of copper alloy with gold flash on the mating area and tin on the termination tails. The insulator is black polyamide (PA9T) with UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C. Current rating is 1A per contact with an initial contact resistance of 20mΩ max. The mating pin height (contact length) is 3.00mm. The connector is packaged in tubes.

M50-3630242 Quick Information

Product Type: Header, Male Pins
Series: M50
Canonical Name: Harwin M50-3630242 2-Pin Male Header, 1.27mm Pitch, Surface Mount
Subcategory: Male Pins

M50-3630242 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M50-3630242 Estimated Pricing

Qty Low High
1+ $0.28 $0.28
10+ $0.23 $0.23
25+ $0.21 $0.21
100+ $0.15 $0.15
228+ $0.13 $0.13
1,140+ $0.12 $0.12
5,016+ $0.12 $0.12
10,032+ $0.12 $0.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

M50-3630242 Features

  • 2-position single-row header.
  • 1.27mm pitch for compact designs.
  • Surface mount termination.
  • Gold flash on mating contacts.
  • Rated for 1A per contact.

M50-3630242 Applications

  • Board-to-board stacking applications.
  • Suitable for compact electronic modules.
  • Used in signal interconnections.

M50-3630242 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M50-3630242 have?

The connector has 2 positions in a single row.

What is the pitch of this connector?

The pitch is 1.27mm (0.050 inches).

What is the current rating per contact?

The current rating is 1A per contact.

What mounting type is used?

Surface mount (SMT) with solder termination.

What contact finish does this connector have?

Gold flash on the mating contact area and tin on the termination tails.

What is the operating temperature range?

-40°C to 105°C.

What material are the contacts made of?

Copper alloy (per datasheet).
