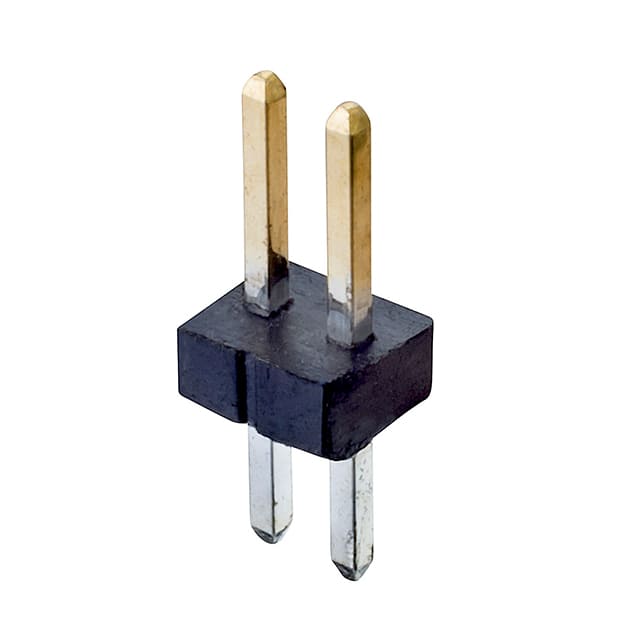

M50-3530242 The Harwin Inc. M50-3530242 is a 2-position male pin header with a 1.27mm pitch. It features a Through Hole mounting type and Tin contact finish.
Mfr Part #:

M50-3530242

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
The Harwin Inc. M50-3530242 is a 2-position male pin header with a 1.27mm pitch. It features a Through Hole mounting type and Tin contact finish.
✓ Total Stock: 480 pcs
$ Price Range: $1.00

M50-3530242 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
480 pcs
On Request
480 pcs On Request 1 On Request On Request 480 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M50-3530242 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

M50-3530242 Description

Short technical summary and product information.

This Harwin Inc. M50-3530242 is a 2-position male pin header designed for board-to-board applications. It features a 1.27mm pitch and a Through Hole mounting type, ensuring secure integration onto PCBs.



The connector has a current rating of 1A per contact and operates within a temperature range of -40°C to 105°C. The contact material is Brass with a Tin finish, and the insulation is made from Polyamide (PA9T), Nylon 9T in Black. It is rated UL94 V-0 for material flammability.



Key mechanical specifications include a contact length of 3.00mm and an insulation height of 1.00mm. The style is specifically for Board to Board connections, and it is an Unshrouded header with a Push-Pull fastening type. The termination style is Solder.



This component is suitable for various electronic designs requiring reliable interconnects with specific pitch and mounting requirements.

M50-3530242 Quick Information

Product Type: Connector
Canonical Name: Harwin Inc. M50-3530242 2 Position Male Pin Connector
Subcategory: Male Pin

M50-3530242 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M50-3530242 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

M50-3530242 Features

  • 2-position male pin header connector.
  • 1.27mm pitch for compact designs.
  • Through Hole mounting for PCB integration.
  • Tin contact finish for reliability.
  • Operates from -40°C to 105°C.

M50-3530242 Applications

  • Ideal for board-to-board connections.
  • Suitable for compact electronic assemblies.
  • Used in applications requiring specific pitch.
  • Reliable interconnect for various devices.

M50-3530242 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

It has 2 positions.

What is the pitch of this header?

The pitch is 1.27mm (0.050 inches).

What is the current rating per contact?

The current rating per contact is 1A.

What mounting type is used for this connector?

It uses through-hole mounting.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What material is used for the contact finish?

The contact finish is tin.

What insulation material is used?

The insulation material is Polyamide (PA9T), Nylon 9T.
