| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
128 pcs
|
128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Type | |
| Current Rating (Per Contact) | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

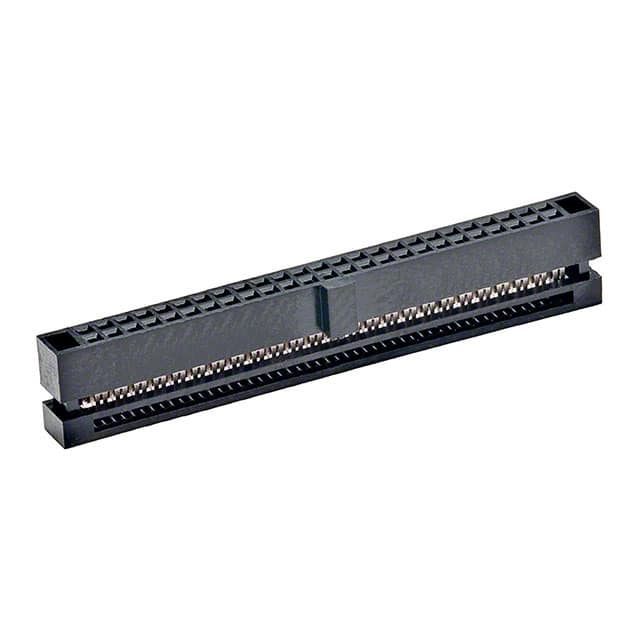

The Harwin M50-3302542 is a 50 position IDC receptacle designed for use with 30 AWG ribbon cable. It features a 1.27mm pitch with two rows of female socket contacts, providing a high-density interconnect solution. The connector uses IDC termination for cable assembly and is mounted as free hanging (in-line). Contacts are gold plated over copper alloy for reliable electrical performance. The housing is made of 30% glass filled PBT (UL94V-0 black). A latch holder fastening type ensures secure mating, and the feed through feature allows pass-through wiring. Electrical ratings include a maximum current of 1A per contact and contact resistance of 20mΩ initial and 30mΩ after conditioning. The connector is suitable for low-power signal applications in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.35 | $5.35 |
| 10+ | $4.41 | $4.41 |
| 25+ | $4.19 | $4.19 |
| 48+ | $3.99 | $3.99 |
| 112+ | $3.83 | $3.83 |
| 256+ | $3.61 | $3.61 |
| 512+ | $3.44 | $3.44 |
| 1,008+ | $3.17 | $3.17 |
| 2,512+ | $2.96 | $2.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
1.27mm (0.050 inches).
1A maximum per contact.
Free Hanging (In-Line) with IDC termination.
Gold.
30 AWG ribbon cable.
30% Glass Filled PBT, UL94V-0 Black.
