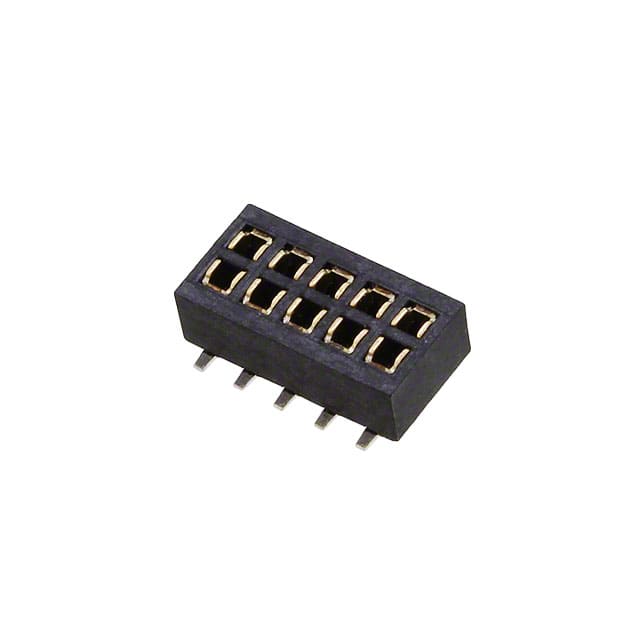

The M50-3150542 from Harwin is a 10 position (5+5) female receptacle connector part of the Archer M50 series. It features a 1.27mm (0.050") pitch with two rows and is designed for surface mount soldering. The connector has a push-pull fastening type and includes a board guide for accurate placement. The insulation height is 2.2mm, and it supports multiple mated stacking heights: 3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, and 8.6mm.
This connector is suitable for board-to-board or cable-to-board applications. The housing is made of high temperature thermoplastic with UL94 V-0 flammability rating, and the contacts are copper alloy with tin flash finish. Each contact is rated for 1A current, with a maximum initial contact resistance of 20mΩ and 30mΩ after conditioning. The operating temperature range is -40°C to 105°C.
The surface mount design with dual entry (top or bottom) allows flexible PCB integration. The connector is RoHS3 compliant and REACH unaffected, though these compliances are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.41 | $3.41 |
| 10+ | $3.19 | $3.19 |
| 25+ | $2.49 | $2.49 |
| 90+ | $2.37 | $2.37 |
| 270+ | $2.36 | $2.36 |
| 540+ | $2.18 | $2.18 |
| 1,080+ | $2.09 | $2.09 |
| 5,040+ | $1.86 | $1.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions (5+5).
1.27mm (0.050").
1A per contact.
Surface mount.
-40°C to 105°C.
3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, 8.6mm.
Tin, Flash.
