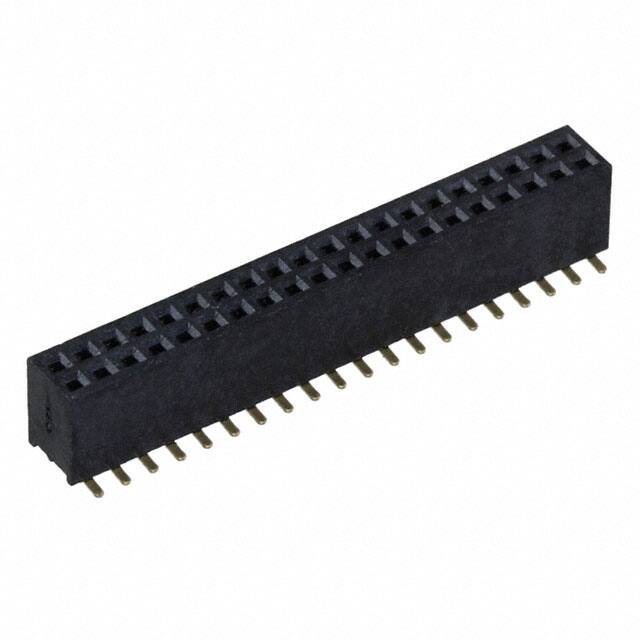

The Harwin M50-3102045 is a 40-position (20+20) female receptacle from the Archer M50 series. It features a 1.27mm pitch with double row configuration and straight surface mount termination. The connector has a push-pull fastening type and is designed for board-to-board or cable applications.
The housing is made of high temperature thermoplastic with UL94 V-0 flammability rating and is black in color. Contacts are copper alloy with gold flash finish. The insulation height is 4.60mm and mated stacking heights of 5.5mm and 6.18mm are supported.
Electrical ratings include 1A current per contact and a voltage rating of 250V. Operating temperature range is -40°C to 105°C. The connector is packaged in tubes.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.18 | $6.18 |
| 10+ | $4.96 | $4.96 |
| 23+ | $4.95 | $4.95 |
| 115+ | $4.42 | $4.42 |
| 253+ | $4.40 | $4.40 |
| 506+ | $3.98 | $3.98 |
| 1,012+ | $3.75 | $3.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050") with a row spacing of 1.27mm.
It has 40 positions arranged as 20+20 in two rows, all positions loaded.
The current rating is 1A per contact maximum.
The voltage rating is 250V. The dielectric withstanding voltage is 300V AC and 500V DC for 1 minute.
The mounting type is surface mount with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is gold flash over nickel on the contact area.
