| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
242 pcs
|
242 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Termination | |
| Termination Style |

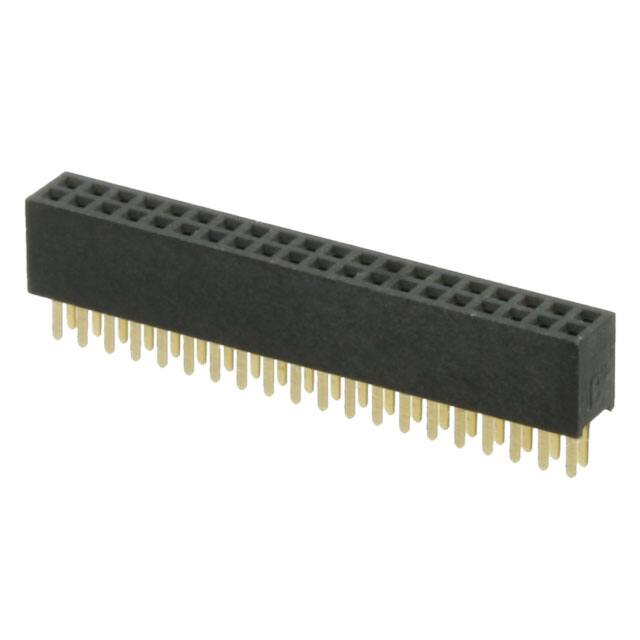

The Harwin M50-3002045 is a 40-position receptacle from the M50 series, designed for board-to-board or cable connections. It features a 1.27mm pitch with two rows of female socket contacts. The contacts are finished with gold flash for reliable conductivity, and termination is through hole solder. The connector has a push-pull locking mechanism for secure mating. The black insulation is made of high-temperature thermoplastic with a UL94 V-0 flammability rating. Key dimensions include an insulation height of 4.40mm and mated stacking heights of 5.4mm, 6.08mm, and 9.37mm. The operating temperature range is -40°C to 105°C, and the current rating is 1A per contact.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.56 | $4.56 |
| 10+ | $3.67 | $3.67 |
| 22+ | $3.66 | $3.66 |
| 110+ | $3.27 | $3.27 |
| 506+ | $2.93 | $2.93 |
| 1,012+ | $2.79 | $2.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions arranged in 2 rows.
1.27mm (0.050 inch) between contacts.
1 Ampere per contact.
Through hole mounting with solder termination.
-40°C to 105°C.
UL94 V-0.
Yes, a push-pull locking mechanism.
